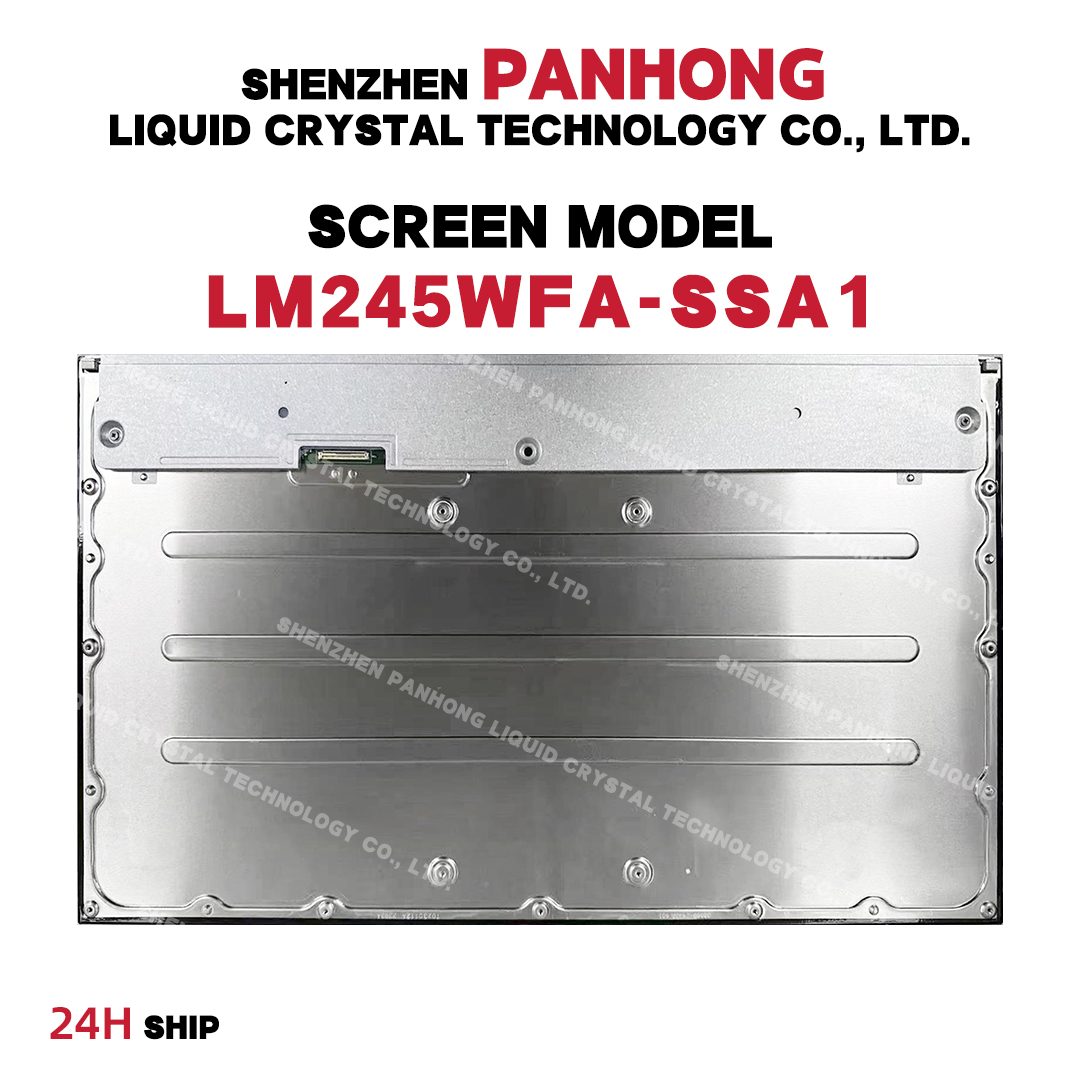

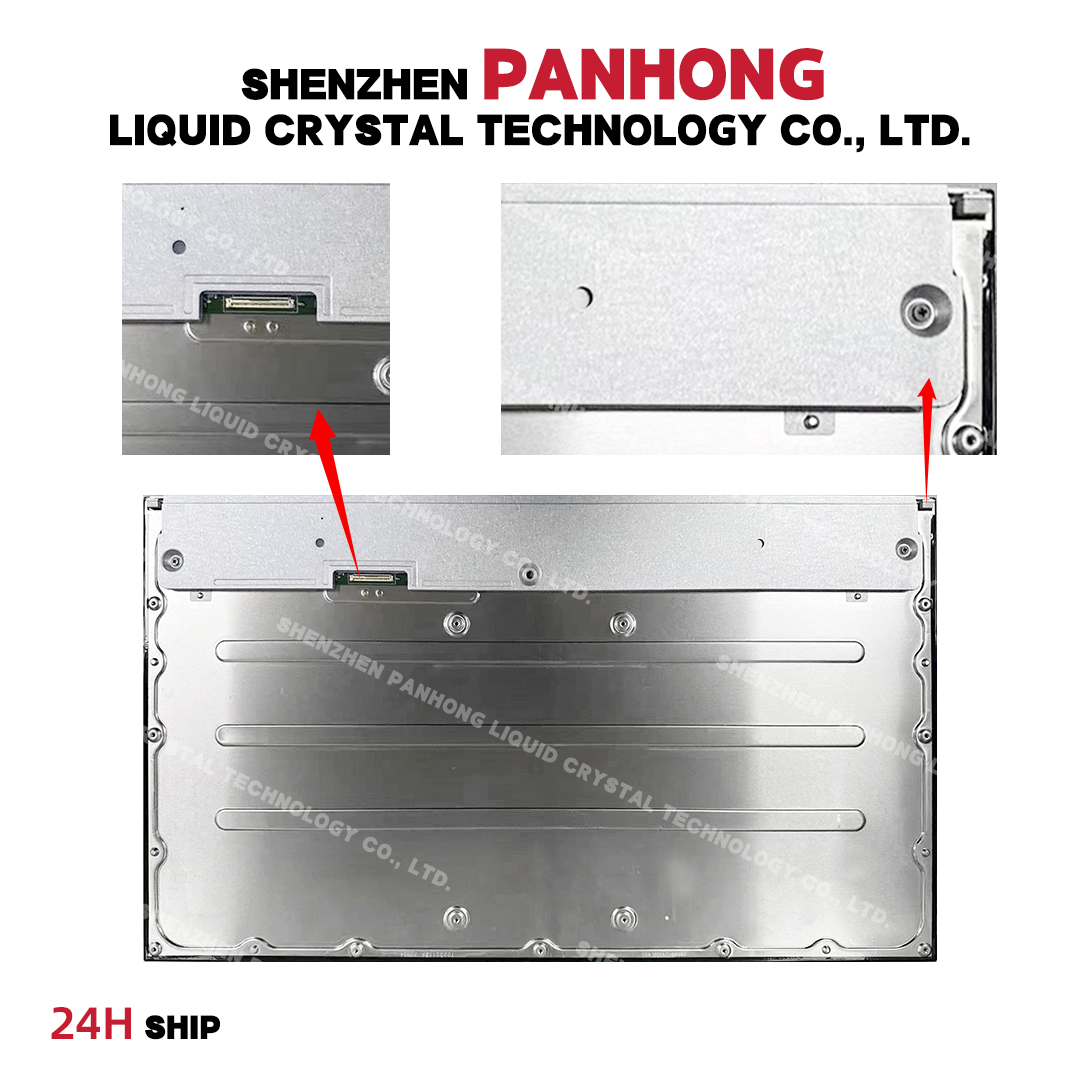

LM245WFA-SSA1 24.5" LCD Screen Display IPS FHD

$65.00

50 Views

LM245WFA-SSA1  24.5" LCD   Screen Display IPS FHD

Get a Quote

Category :

24.5-inch LCD screen

Description

The display resolution of LM245WFA-SSA1 is 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width: height), and the pixels are arranged vertically in RGB stripes. Its display area size is 543.744 × 302.616 (width × height) mm, and its appearance size is 552.5 × 319.6 (width × height) × 13.95 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 1.79/1.87Kgs (Typ./Max.). In terms of backlight, this product adopts a side entry light source with 4 strings × 2CN WLED emission, and the service life of the light source is 30K hours, without backlight driver. LM245WFA-SSA1 adopts eDP (8 Lanes) signal interface, with a total of 60 pins, connected by terminals, and a screen driving voltage of 10.0V (Typ.). Its typical vertical refresh rate Fv is 480Hz.
