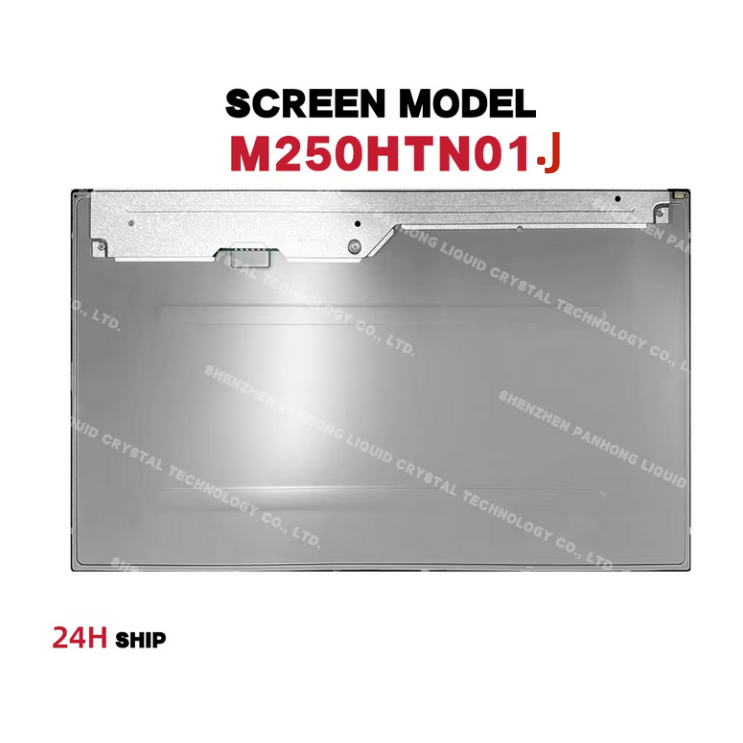

24.5" New LCD screen model M250HTN01.J IPS FHD

$150.00

21 Views

M250HTN01. J has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in a vertical RGB stripe pattern. Its display area size is 543.744 × 302.616 (width × height) mm, the visible size is 546.94 × 305.82 (width × height) mm, the appearance size is 556 × 323.2 (width × height) × 14.25 (thickness) mm, the surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 2.18/2.29Kg (Typ./Ma.). In terms of backlight, this product adopts a 17S4P WLED side entry light source with a lifespan of 30K hours, without backlight driver. M250HTN01. J adopts eDP (8 Lanes) signal interface, with a total of 51 pins, connected by terminals, and a screen driving voltage of 12.0V (Typ.). Its typical vertical refresh rate Fv is 360Hz.

Get a Quote

Category :

24.5-inch LCD screen

Description

Related Products

24.5" New LCD screen model M250HTN01.G IPS FHD

M250HTN01. G has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in a vertical RGB stripe pattern. Its display area size is 543.744 (width) × 302.616 (height) mm, and its appearance size is 556 (width) × 323.2 (height) × 14.25 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 2.18/2.29Kgs (Typ./Ma.). In terms of backlight, this product adopts a 17S4P WLED side entry light source with a lifespan of 30K hours, without backlight driver. M250HTN01. G adopts eDP (4 Lanes) signal interface, with a total of 51 pins, connected by terminals, and a screen driving voltage of 12.0V (Typ.). Its typical vertical refresh rate Fv is 240Hz.
