The LTM200KP01 has a display resolution of 1600 (RGB) × 900 (HD+), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 442.8 (width) × 249.075 (height) mm, the external dimensions are 462.8 (width) × 272 (height) × 17.5 (thickness) mm, the visible dimensions are 446.8 (width) × 253.2 (height) mm, the surface treatment is matte (Haze 44%), Hard coating (3H), and the net weight of the product is 2.60Kgs (Max.). In terms of backlight, this product uses 4 pieces of CCFL emitting side entry light sources (top and bottom), with a lifespan of 50K hours and no backlight driver included. LTM200KP01 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

The display resolution of LTM230HT03 is 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width: height), and the pixels are arranged vertically in RGB stripes. Its display area size is 509.76 (width) × 286.74 (height) mm, the external dimensions are 534 (width) × 311.7 (height) × 18.9 (thickness) mm, the visible dimensions are 513.8 (width) × 290.8 (height) mm, the surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 3.00Kgs (Max.). In terms of backlight, this product uses 2 pieces of CCFL emitting side entry light sources (top and bottom), with a lifespan of 50K hours and no backlight driver included. LTM230HT03 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

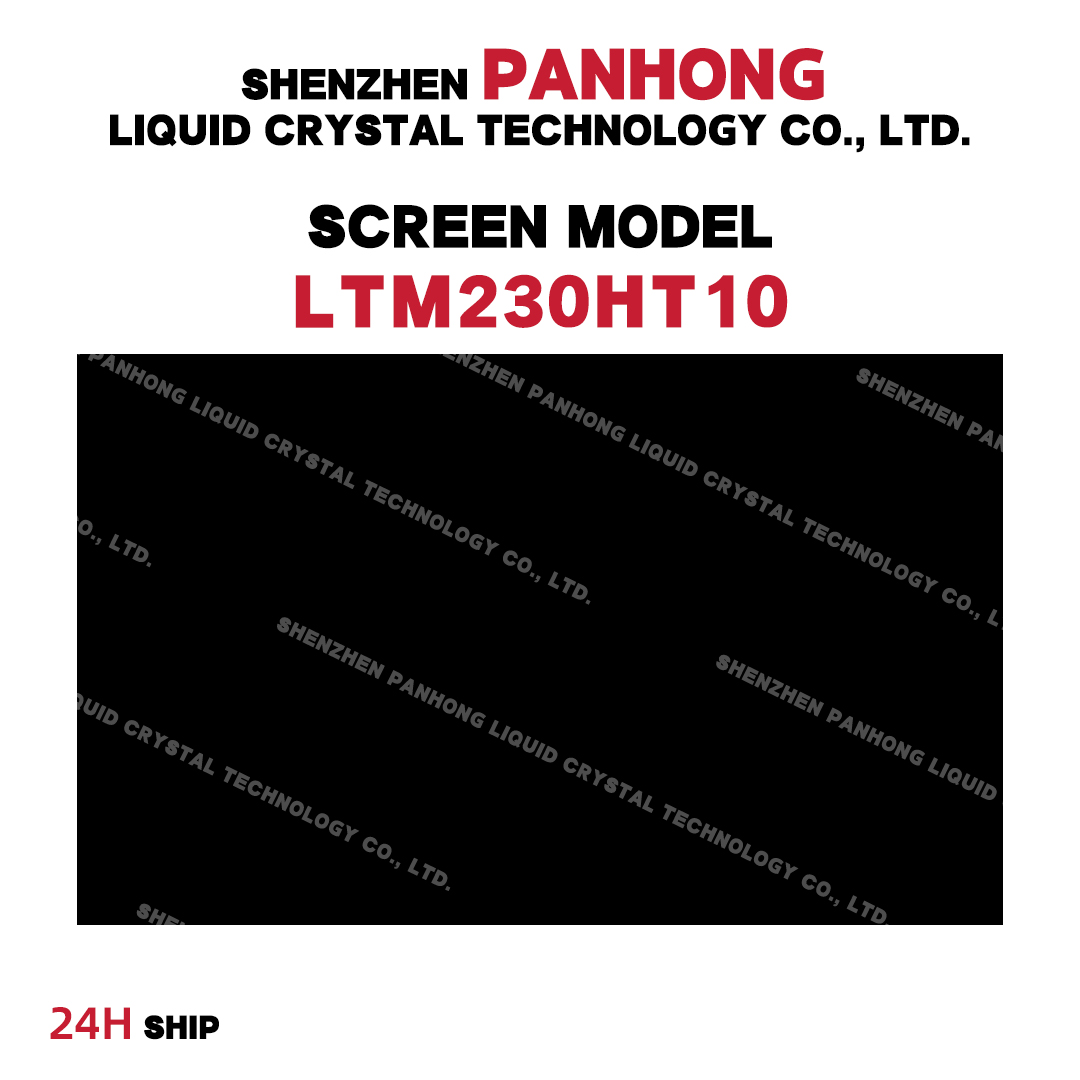

The LTM230HT10 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 509.76 × 286.74 (width × height) mm, the visible size is 513.8 × 290.8 (width × height) mm, the appearance size is 534 (width) × 311.7 (height) × 10.7 (thickness) mm, the surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 1.60Kgs (Max.). In terms of backlight, this product adopts a side entry light source (right side) with 11S3P WLED emission, and the service life of the light source is 30K hours, without backlight driver. The LTM230HT10 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

The LTM270DL07-M01 has a display resolution of 2560 (RGB) × 1440 (Quad HD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 596.736 × 335.664 (width × height) mm, and its appearance size is 626.3 × 362.6 (width × height) × 9.6 (thickness) mm. The surface treatment is matte (Haze 1%), and the net weight of the product is TBD. In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours, including LED driver. LTM270DL07-M01 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 70 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 65Hz.

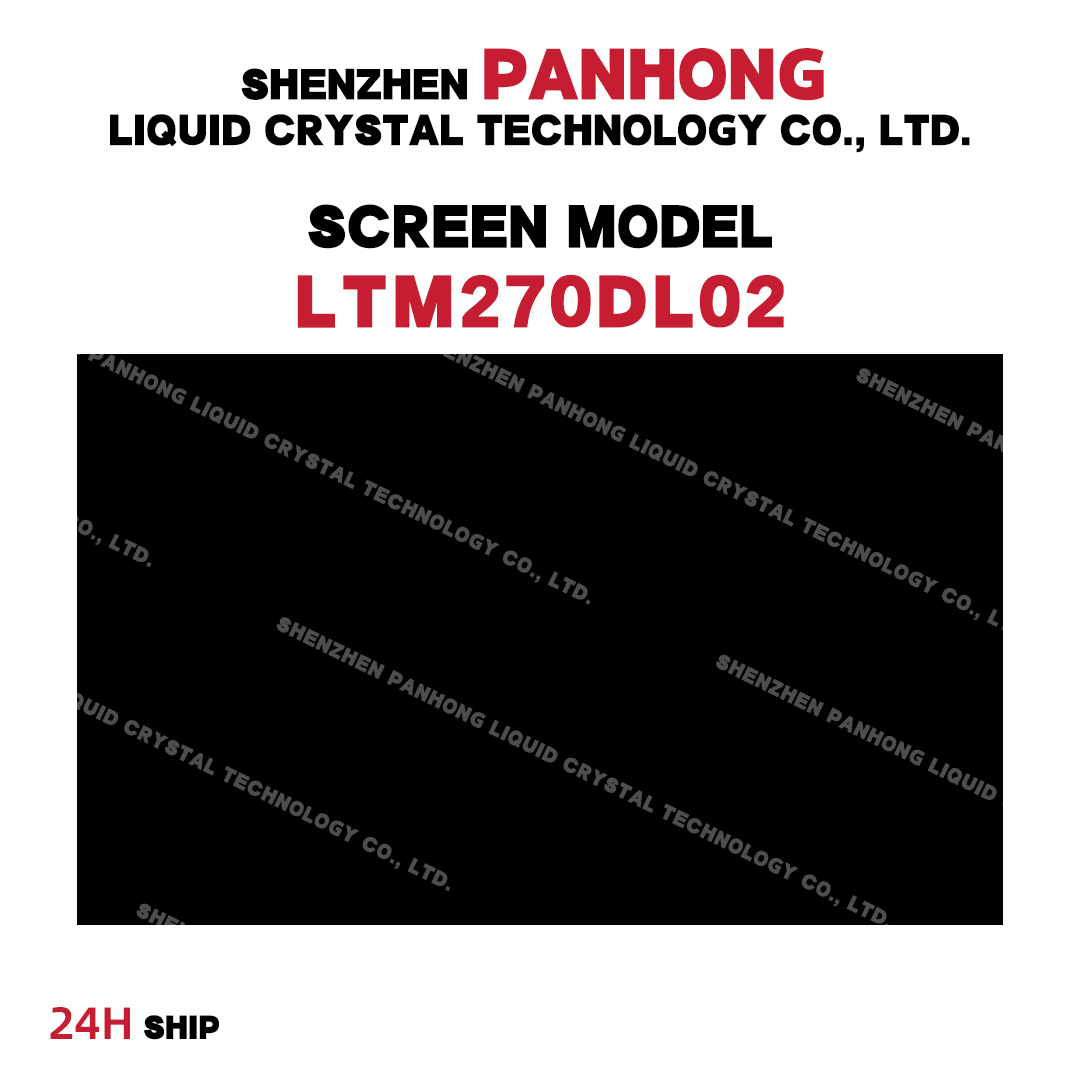

The LTM270DL02 has a display resolution of 2560 (RGB) × 1440 (Quad HD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 596.736 (width) × 335.664 (height) mm, and its appearance size is 630 (width) × 368.2 (height) × 16.9 (thickness) mm. The visible size is 601.7 (width) × 340.7 (height) mm, and the net weight of the product is 3.20Kgs (Max.). In terms of backlight, this product uses a 20S4P WLED side entry light source (bottom) with a lifespan of 30K hours, without backlight driver. LTM270DL02 adopts LVDS (4 ch, 8-bit) signal interface, with a total of 66 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

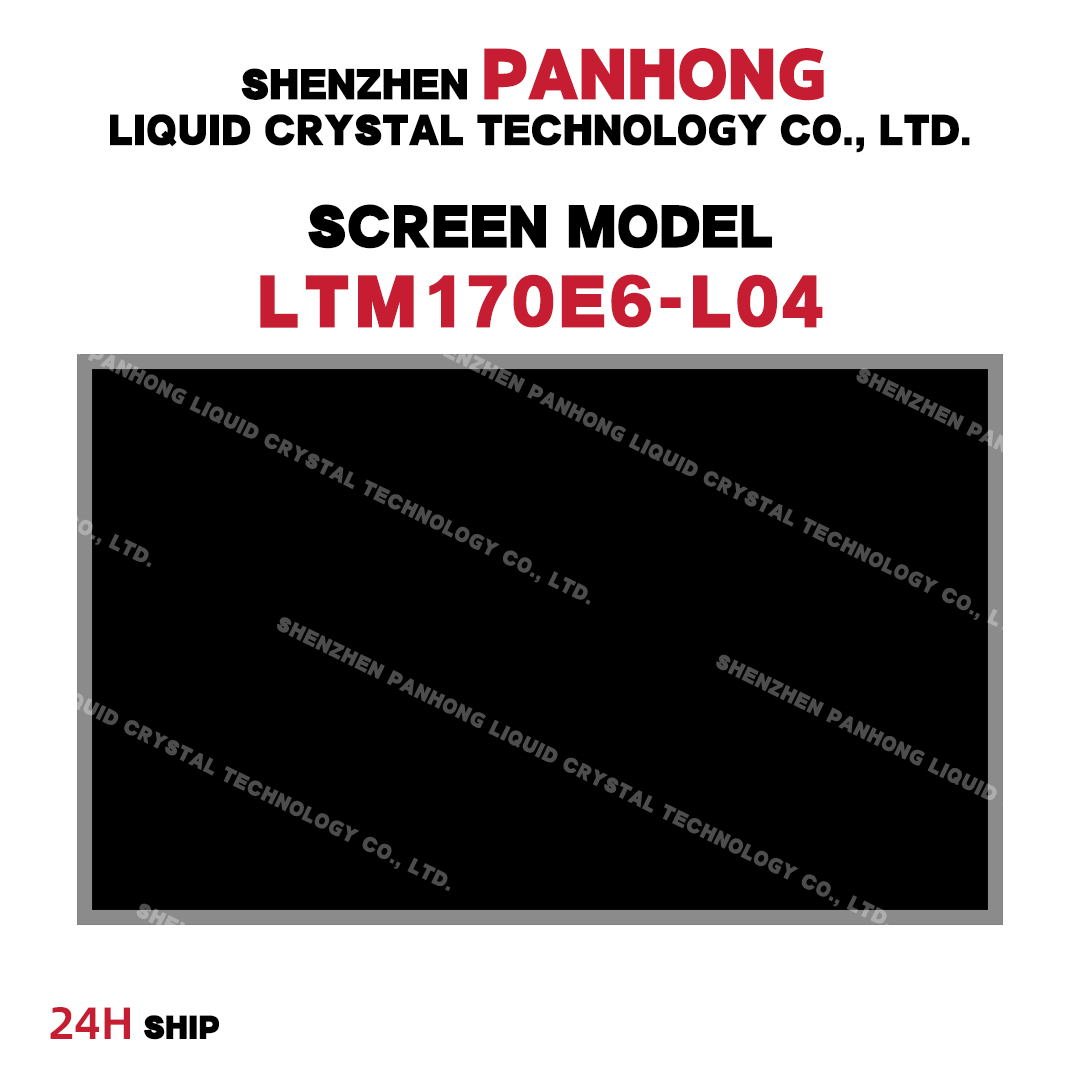

The display resolution of LTM170E6-L04 is 1280 (RGB) × 1024 (SXGA), with an aspect ratio of 5:4 (width: height), and the pixels are arranged vertically in RGB stripes. Its display area size is 337.92 × 270.336 (width × height) mm, the visible size is 341.6 × 273.984 (width × height) mm, the appearance size is 358.5 × 296.5 (width × height) × 17.5 (thickness) mm, the surface treatment is matte (Haze 44%), Hard coating (3H), and the net weight of the product is 2.10Kgs (Max.). In terms of backlight, this product uses 4 pieces of CCFL emitting side entry light sources (top and bottom), without backlight driver. LTM170E6-L04 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.
