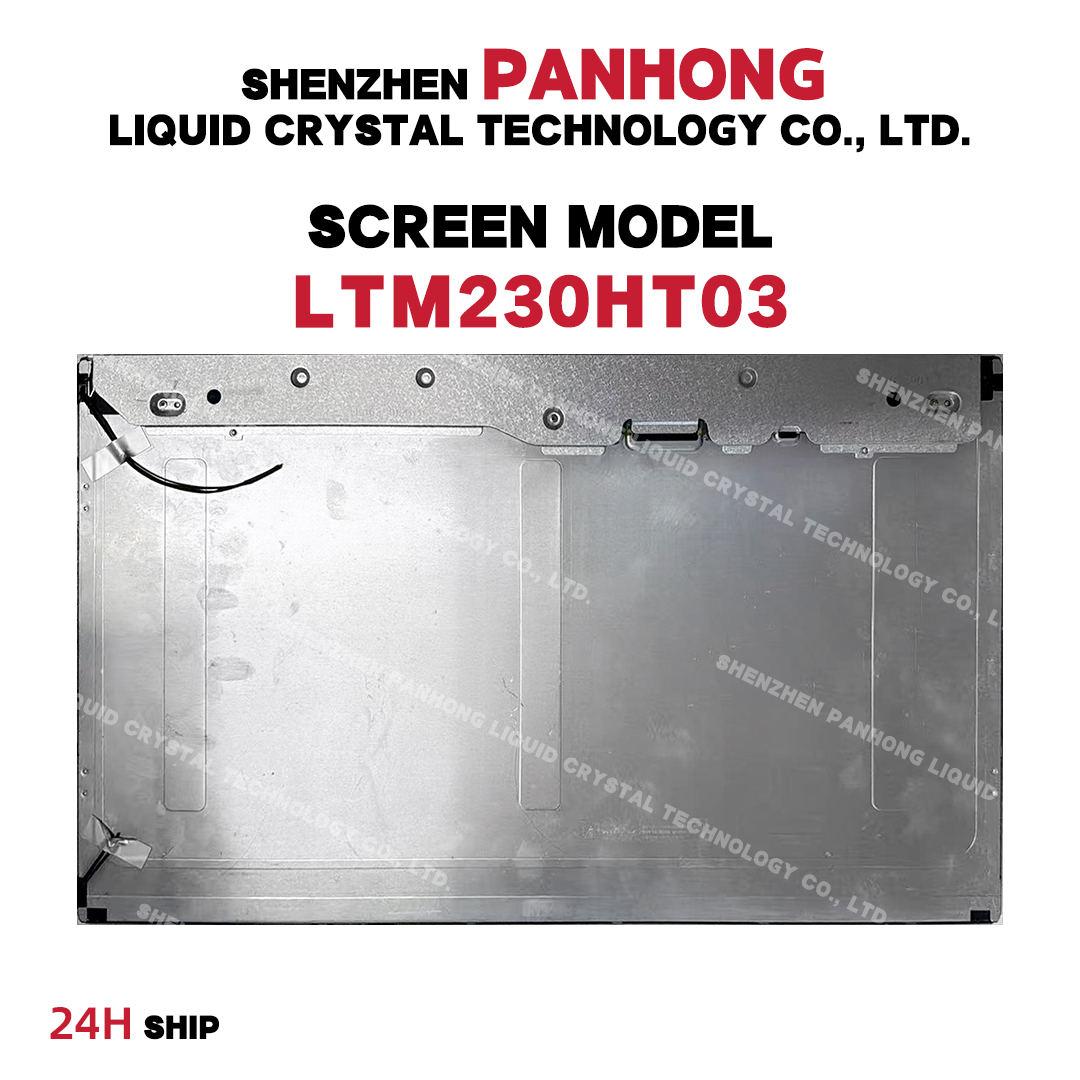

23" New LCD screen model LTM230HT03 IPS FHD

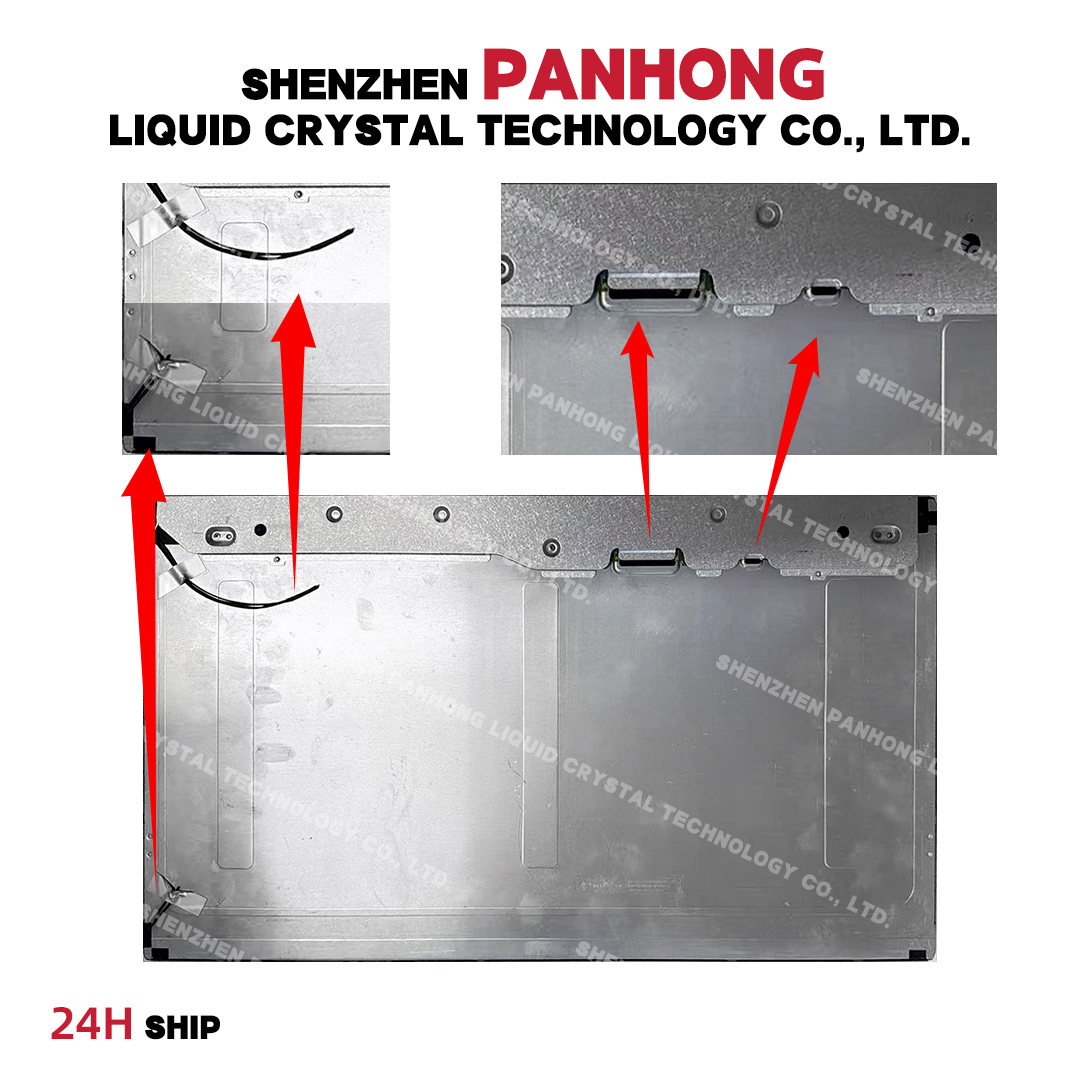

The display resolution of LTM230HT03 is 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width: height), and the pixels are arranged vertically in RGB stripes. Its display area size is 509.76 (width) × 286.74 (height) mm, the external dimensions are 534 (width) × 311.7 (height) × 18.9 (thickness) mm, the visible dimensions are 513.8 (width) × 290.8 (height) mm, the surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 3.00Kgs (Max.). In terms of backlight, this product uses 2 pieces of CCFL emitting side entry light sources (top and bottom), with a lifespan of 50K hours and no backlight driver included. LTM230HT03 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.
