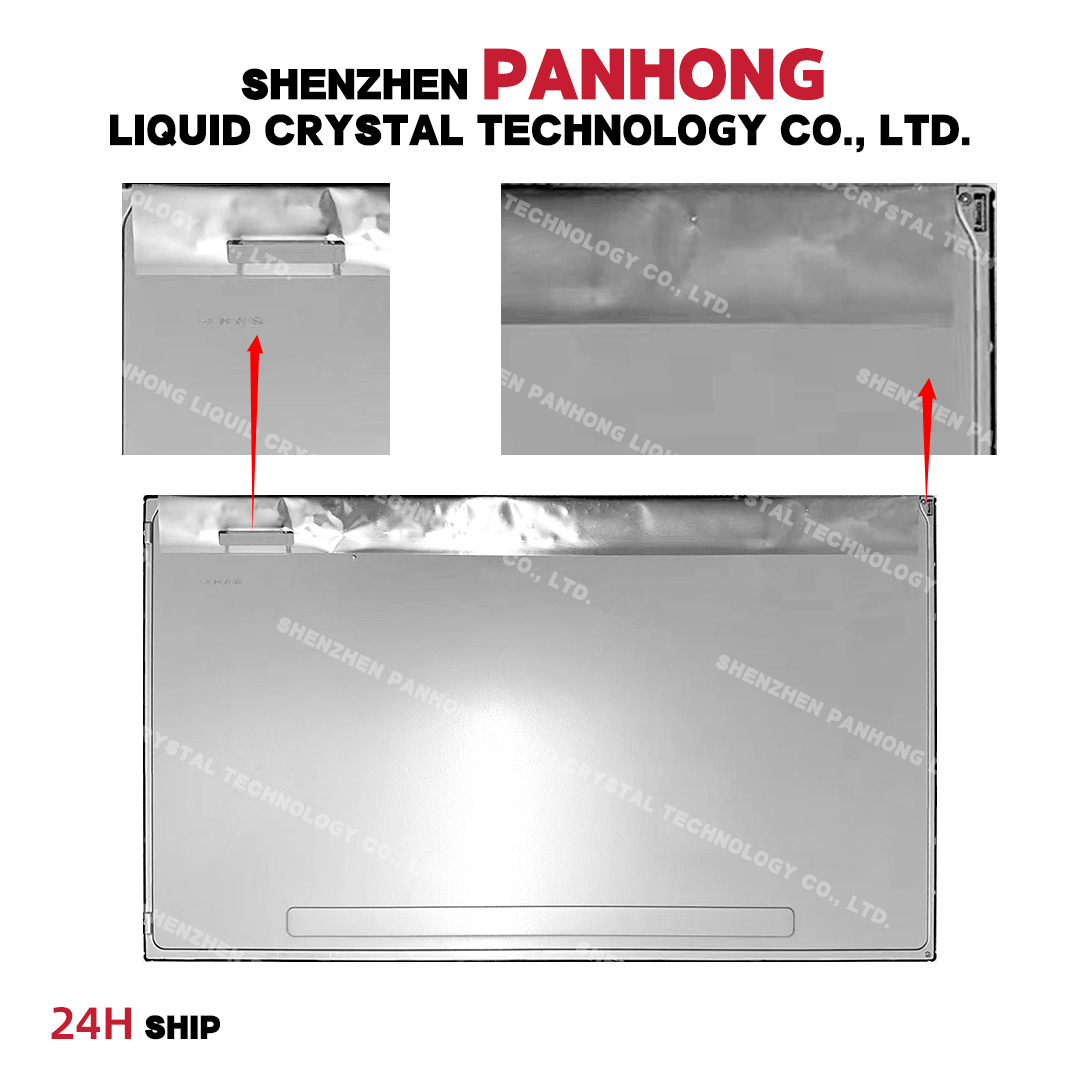

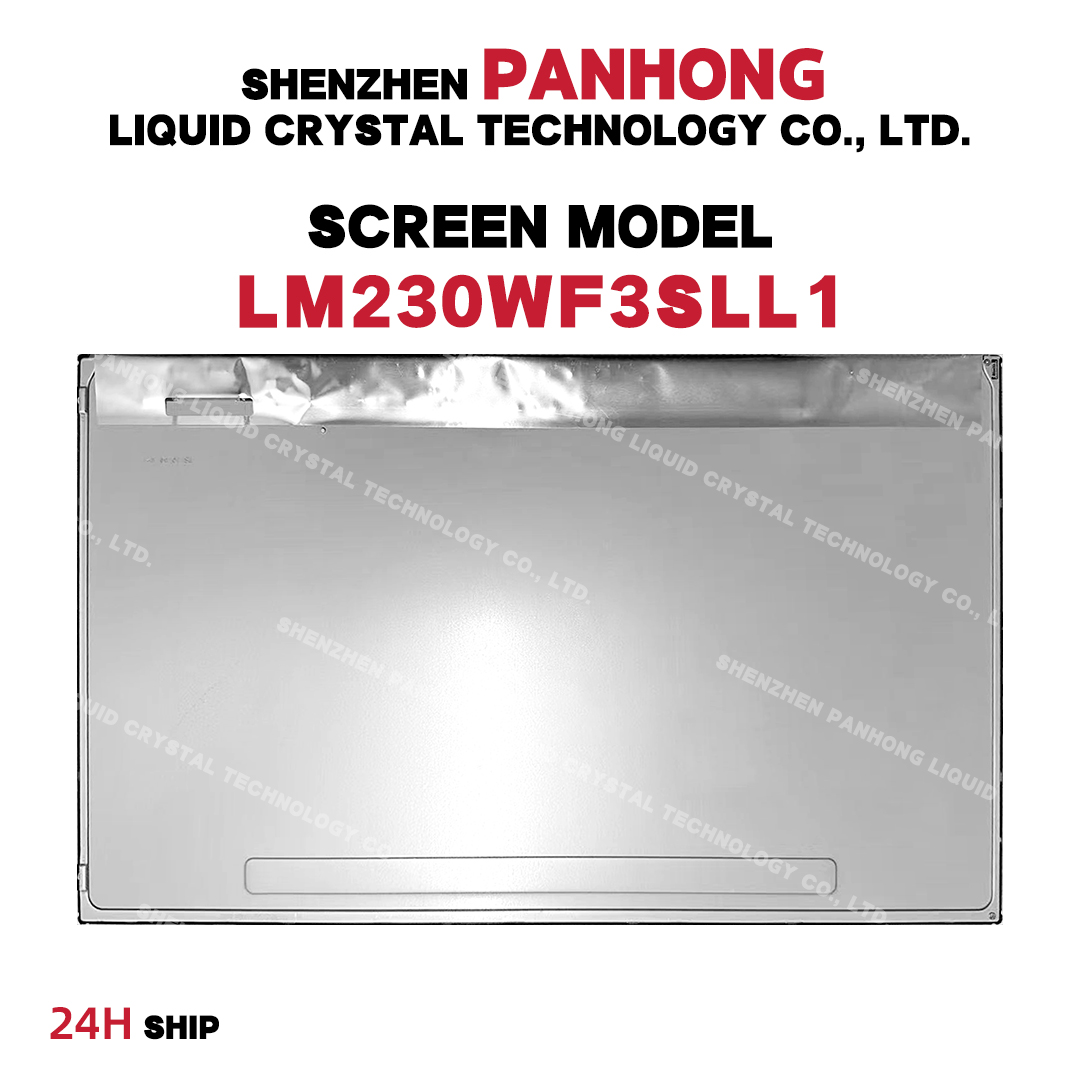

23" New LCD screen model LM230WF3-SLL1 IPS FHD

$56.00

31 Views

Its typical features are: white LED backlight, inverted terminals, and matte surface. Its working temperature is 0~50 ° C and storage temperature is -20~60 ° C. This model is suitable for use in computer monitors.

Get a Quote

Category :

23-inch LCD screen

Description

The display resolution of LM230WF3-SLL1 is 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width: height), and the pixels are arranged vertically in RGB stripes. Its display area size is 509.184 × 286.416 (width × height) mm, the visible size is 513.8 × 291.0 (width × height) mm, the appearance size is 533.2 (width) × 312 (height) × 11 (thickness) mm, and the surface treatment is matte, Hard coating (3H)， The net weight of the product is 2.20/230Kgs (Typ./Max.). In terms of backlight, this product uses a 17S2P WLED side entry light source (on the right), with a lifespan of 30K hours and no backlight driver included. LM230WF3-SLL1 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.
