23”New Original lcd screen module LM230WF5-TLD2 FHD 1920*1080 75HZ

$58.00

23 Views

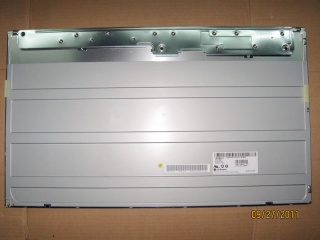

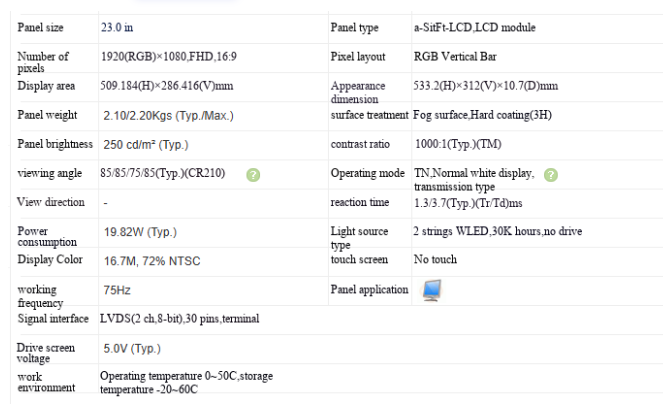

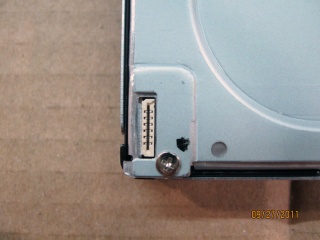

The LM230WF5-TLD2 (alias: LM230WF5 (TL) (D2)) launched by LG Display is a 23.0-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight, no backlight driver, and no touch. Its typical features are summarized as follows: white LED backlight, terminal assembly, and matte surface. Its working temperature is 0~50 ° C and storage temperature is -20~60 ° C. This model is suitable for use in computer monitors. The display resolution of LM230WF5-TLD2 is 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width: height), and the pixels are arranged vertically in RGB stripes. Its display area size is 509.184 × 286.416 (width × height) mm, the visible size is 513.8 × 291.0 (width × height) mm, the appearance size is 533.2 (width) × 312 (height) × 10.7 (thickness) mm, and the surface treatment is matte, Hard coating (3H)， The net weight of the product is 2.10/2.20Kgs (Typ./Max.). In terms of backlight, this product adopts a side entry light source with 2 strings WLED emission, and the service life of the light source is 30K hours, without backlight driver. LM230WF5-TLD2 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

Get a Quote

Category :

23-inch LCD screen

Description
