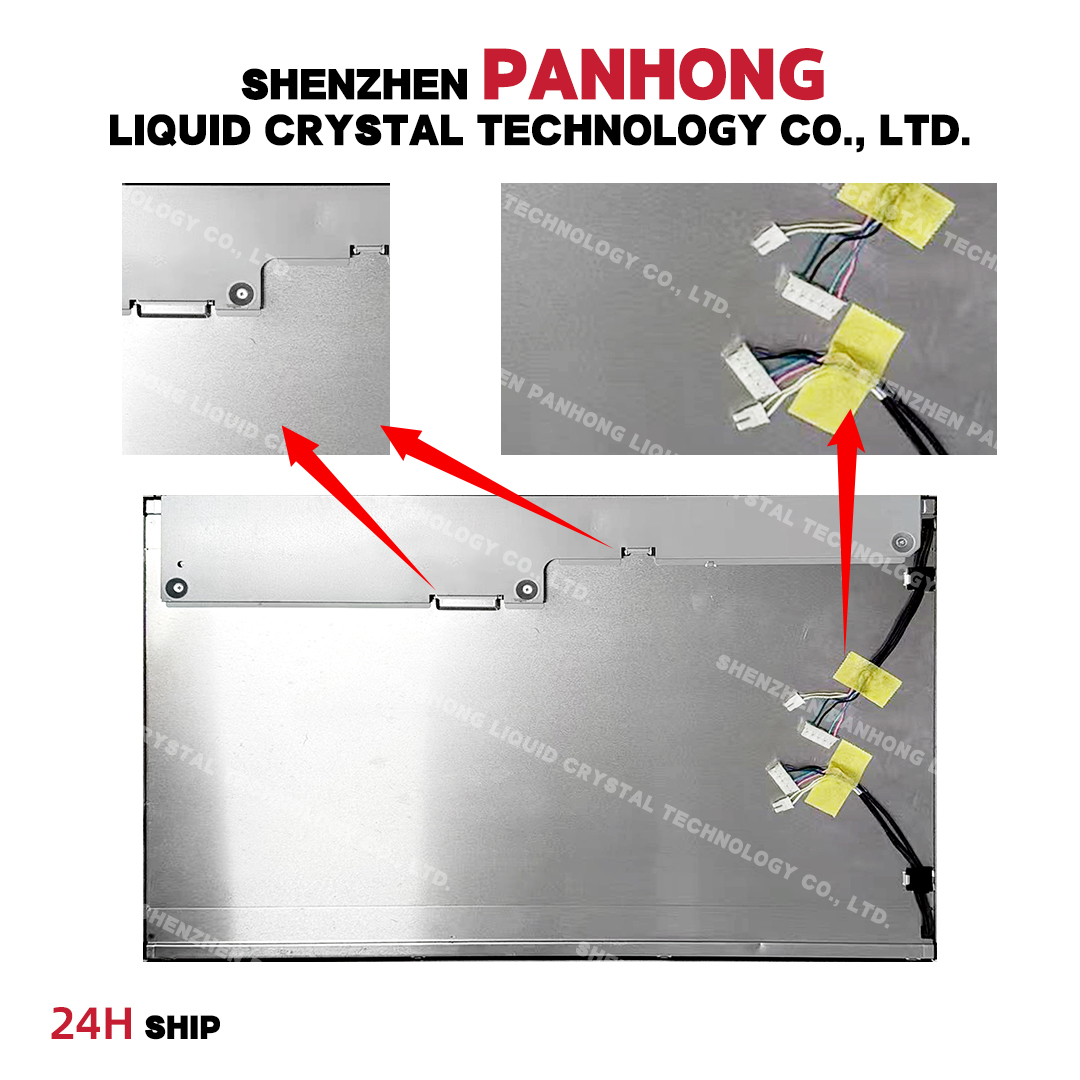

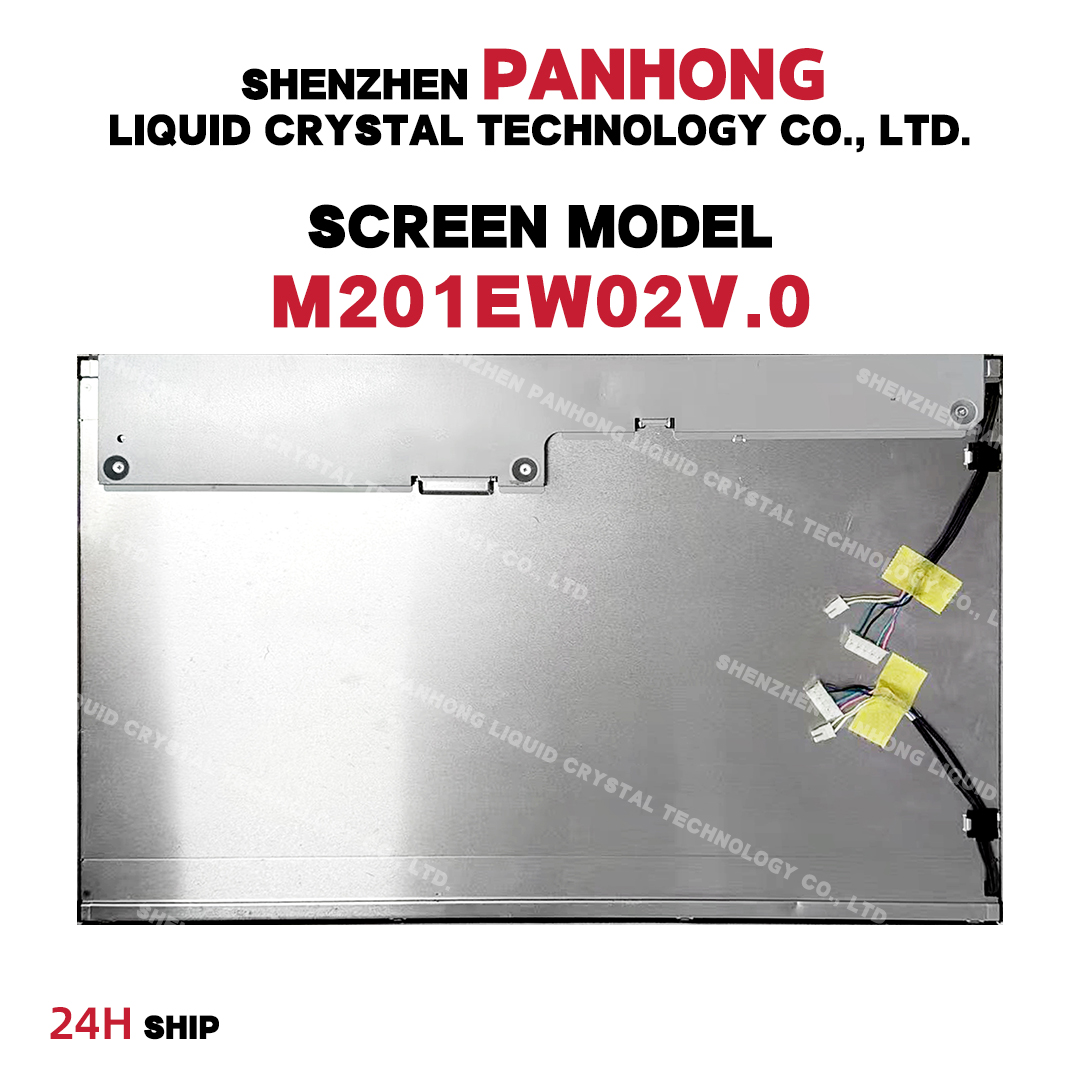

20.1" New LCD screen model M201EW02V.0 IPS FHD

The M215HGE-L21 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 476.64 (width) × 268.11 (height) mm, the external dimensions are 495.6 (width) × 292.2 (height) × 11.5 (thickness) mm, the visible dimensions are 479.8 (width) × 271.3 (height) mm, the surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 1.91/2.10Kgs (Typ./Max.). In terms of backlight, this product adopts a side entry light source (right side) with 11S4P WLED emission, and the service life of the light source is 40K hours, without backlight driver. M215HGE-L21 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.
