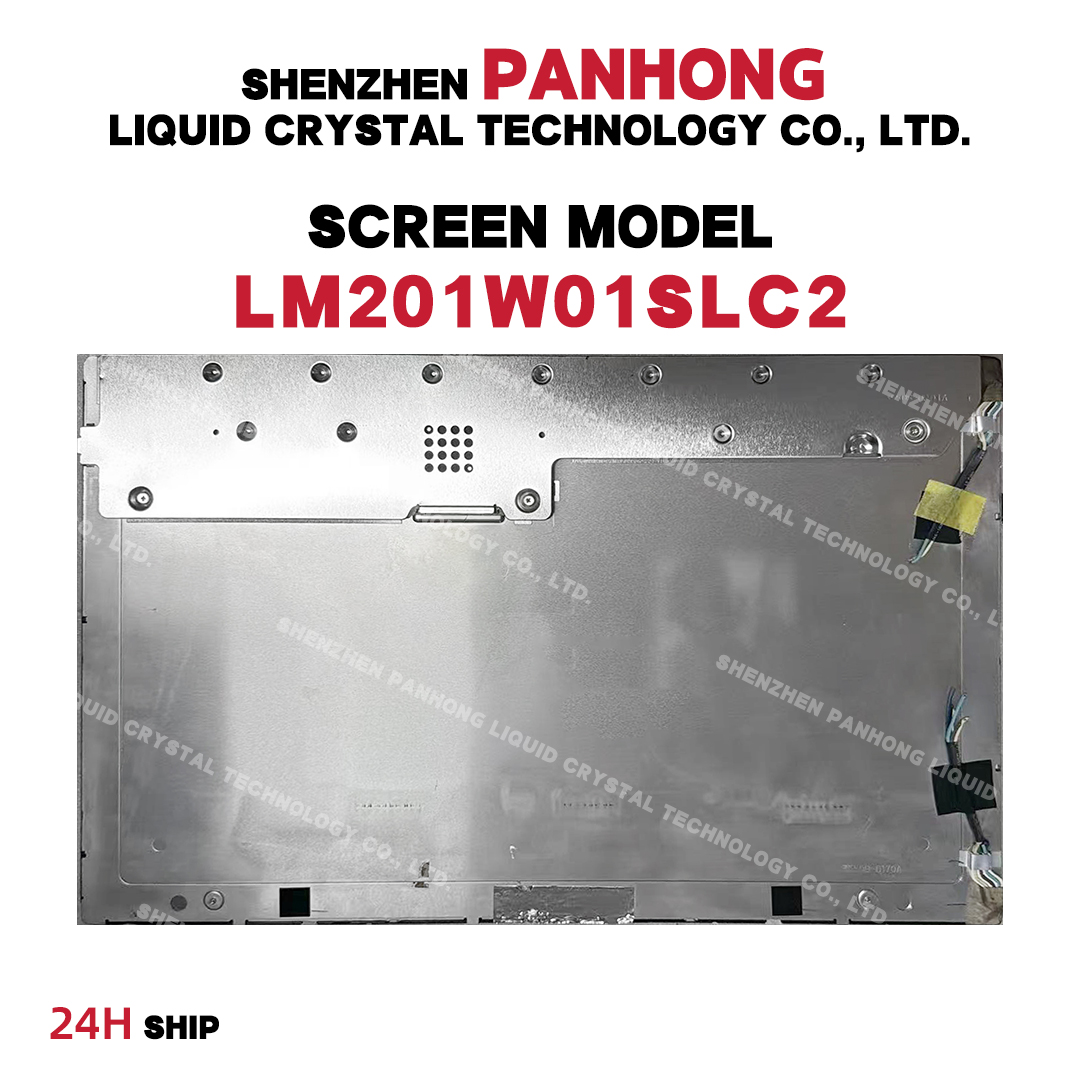

20.1" New LCD screen model LM201W01-SLC2 IPS FHD

$45.00

24 Views

Its typical features are: a lifespan of over 50000 hours and a matte surface. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.0G (9.8 m/s ²). This model is suitable for use with computer monitors.

Get a Quote

Category :

20.1-inch LCD screen

Description

The display resolution of LM201W01-SLC2 is 1680 (RGB) × 1050 (WSXGA+), with an aspect ratio of 16:10 (width: height), and pixels arranged in a vertical RGB stripe pattern. Its display area size is 433.44 × 270.9 (width × height) mm, visible size is 438.4 × 275.9 (width × height) mm, appearance size is 459.4 (width) × 296.4 (height) × 23.3 (thickness) mm, surface treatment is matte (Haze 25%), Hard coating (3H), product net weight is 2.85/3.0Kgs (Typ./Max.). In terms of backlight, this product uses 6 pieces of CCFL emitting side entry light sources (top and bottom), with a lifespan of 50K hours and no backlight driver included. LM201W01-SLC2 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 12.0V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
