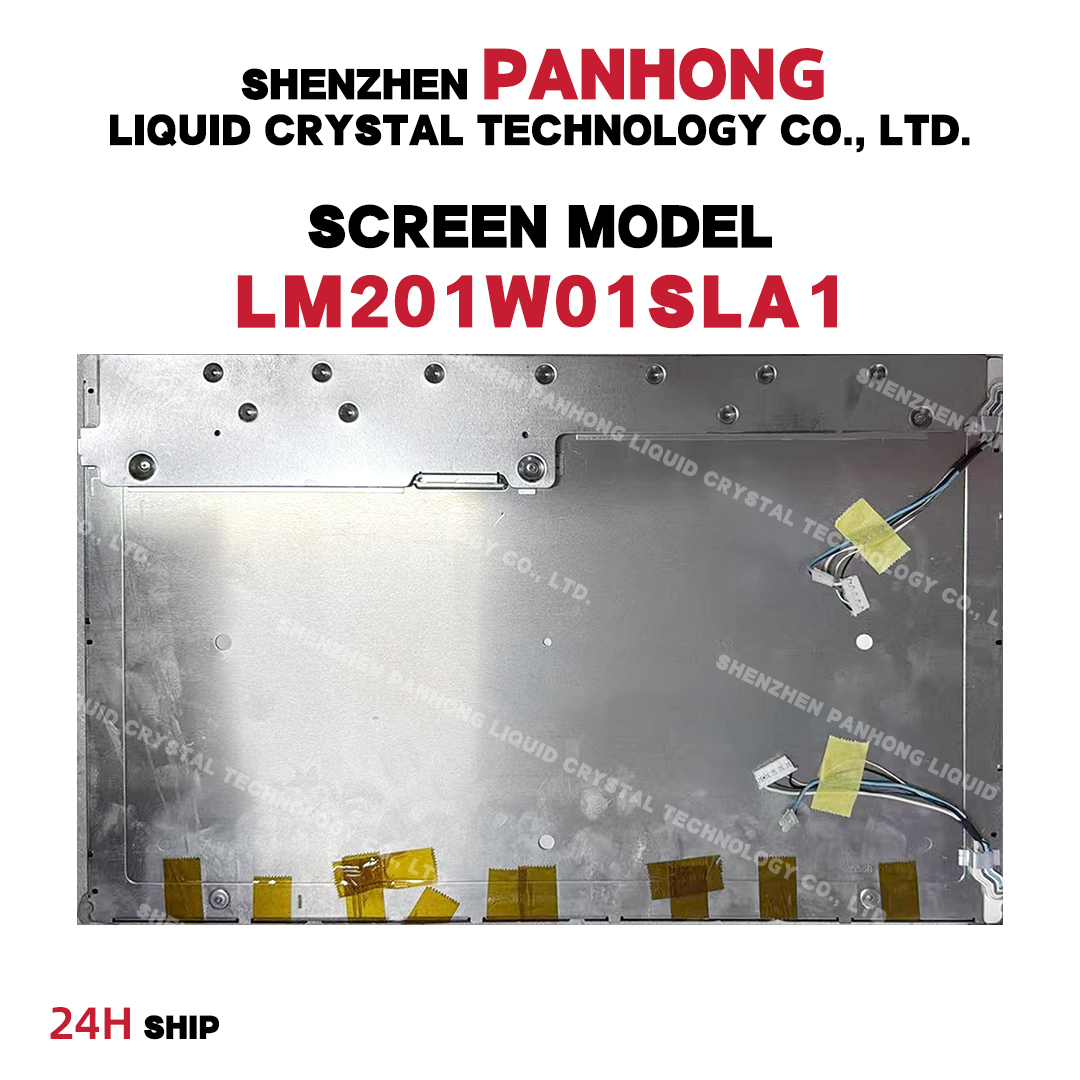

20.1" New LCD screen model LM201W01-SLA1 IPS FHD

$45.00

22 Views

The 20.1-inch LCD module product using a-Si TFT-LCD technology is equipped with CCFL backlight, no backlight driver, and no touch.

Get a Quote

Category :

20.1-inch LCD screen

Description

The display resolution of LM201W01-SLA1 is 1680 (RGB) × 1050 (WSXGA+), with an aspect ratio of 16:10 (width: height), and pixels arranged in a vertical RGB stripe pattern. Its display area size is 433.44 × 270.9 (width × height) mm, the visible size is 438.4 × 275.9 (width × height) mm, the appearance size is 459.4 × 296.4 (width × height) × 23.3 (thickness) mm, the surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 2.85/3.00Kgs (Typ./Max.). In terms of backlight, this product uses 6 pieces of CCFL emitting side entry light sources (top and bottom), with a lifespan of 45K hours and no backlight driver included. LM201W01-SLA1 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 12.0V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
