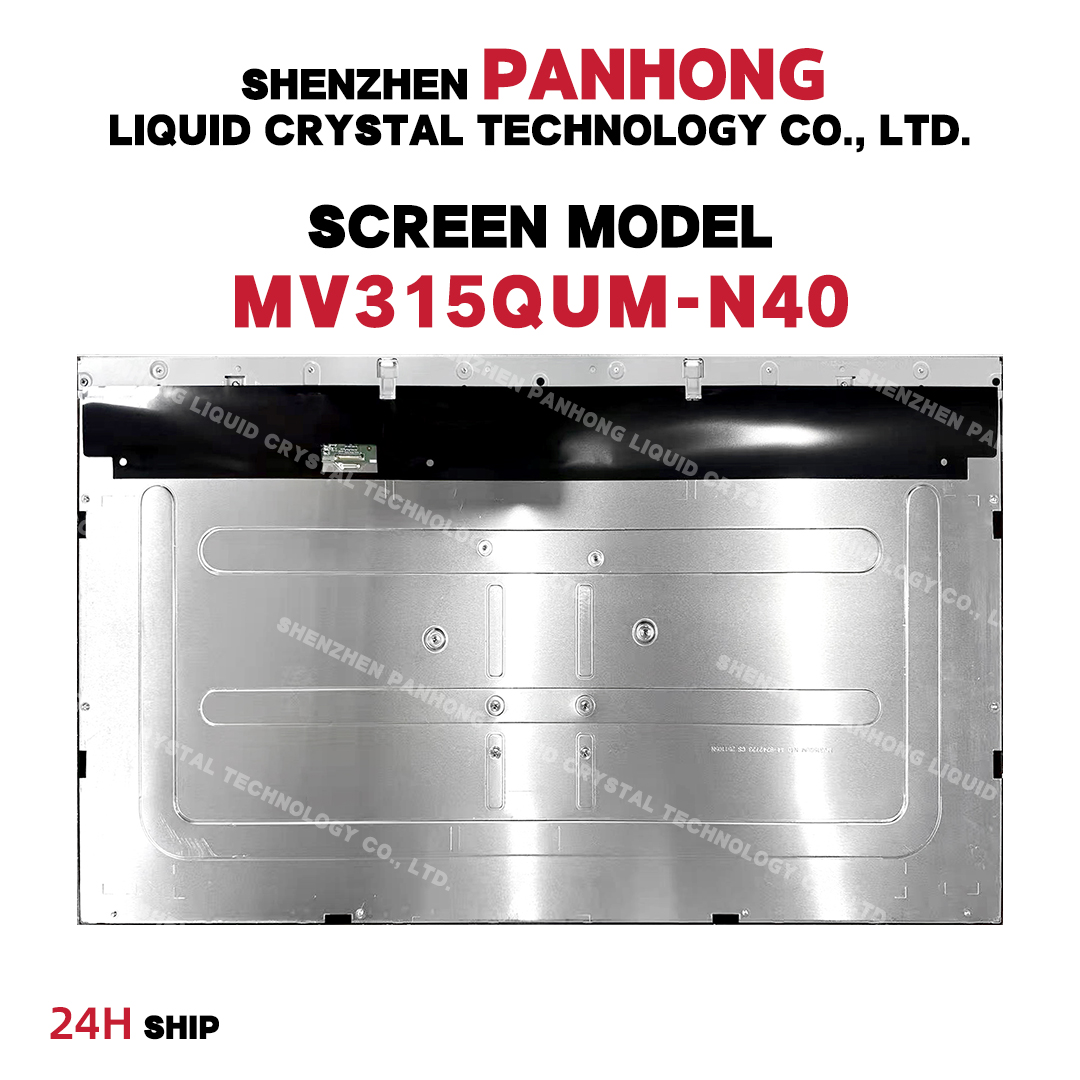

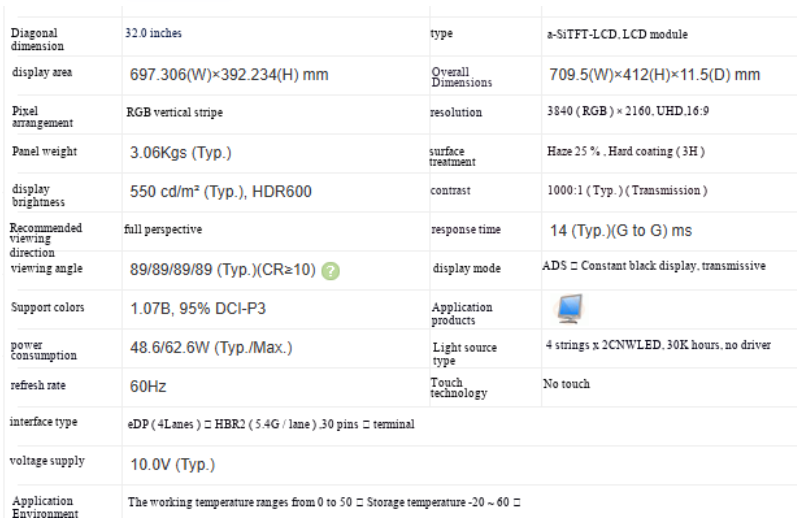

The MV315QUM-N40 has a display resolution of 3840 (RGB) × 2160 (UHD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 697.306 (width) × 392.234 (height) mm, and its appearance size is 709.5 (width) × 412 (height) × 11.5 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 3.06Kg (Typ.). In terms of backlight, this product adopts a side entry light source (bottom) with 4 strings × 2CN WLED emission, and the service life of the light source is 30K hours, without backlight driver. MV315QUM-N40 adopts eDP (4 Lanes) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 10.0V (Typ.). Its typical vertical refresh rate Fv is 60Hz.

TPM315WQ1-DVR01.U 31.5" LCD Screen Display IPS FHD

TPM315WQ1-DVR01.A 31.5" LCD Screen Display IPS FHD

M315RVR01.9 31.5"LCD Screen Display IPS FHD

Typical features are summarized as: DCI-P3, sRGB, 4-sided borderless, 120Hz, white LED backlight, inverted terminals, 10 bit grayscale, surface matte, 4-side borderless, LBL, Reverse type, TCO9.0, ES8.0. Based on its features, this model is recommended for use in computer monitors,

The 32.0-inch LCD module product using a-Si TFT-LCD technology is equipped with WLED backlight, no backlight driver, and no touch.

The 32.0-inch LCD module product using a-Si TFT-LCD technology is equipped with WLED backlight, no backlight driver, and no touch.

Typical features include DCI-P3, sRGB, borderless on 3 sides, white LED backlight, inverted terminals, 10 bit grayscale, matte surface, DCI 98%, 3-side borderless, Panel Reverse type, LBL. Its working temperature is 0~50 ° C and storage temperature is -20~60 ° C. This model is suitable for use in computer monitors.
