24.1”New Original lcd screen module M241HTN01.7 Glass FHD 1920*1080 300HZ
$160.00

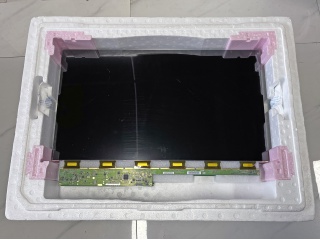

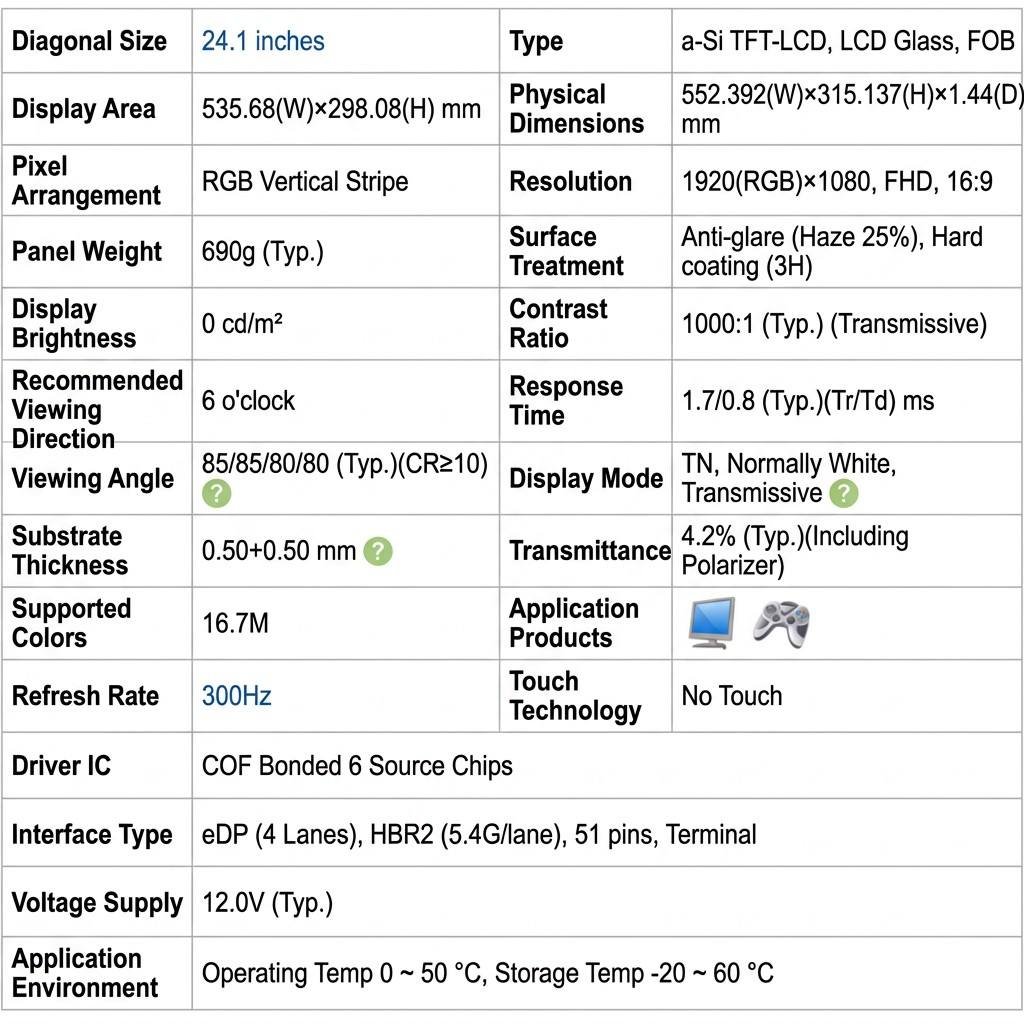

The M241HTN01.7 CELL launched by AUO is a 24.1-inch LCD glass product using a-Si TFT-LCD technology, which has no backlight and no touch. The typical features of the screen library are: borderless on 3 sides, matte surface, 300Hz. Its working temperature is 0-50 ° C and storage temperature is -20~60 ° C. This model is suitable for use in computer monitors and games. According to the product specification document Ver0.3 released by AUO on March 27, 2024, the M241HTN01.7 CELL has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 535.68 × 298.08 (width × height) mm, and its appearance size is 552.392 (width) × 315.137 (height) × 1.44 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 690g (Typ.), using a glass substrate of 0.50+0.50mm. This product has no backlight. The M241HTN01.7 CELL adopts eDP (4 Lanes) signal interface, with a total of 51 pins, connected by terminals, and a screen driving voltage of 12.0V (Typ.). Its typical vertical refresh rate Fv is 300Hz.
