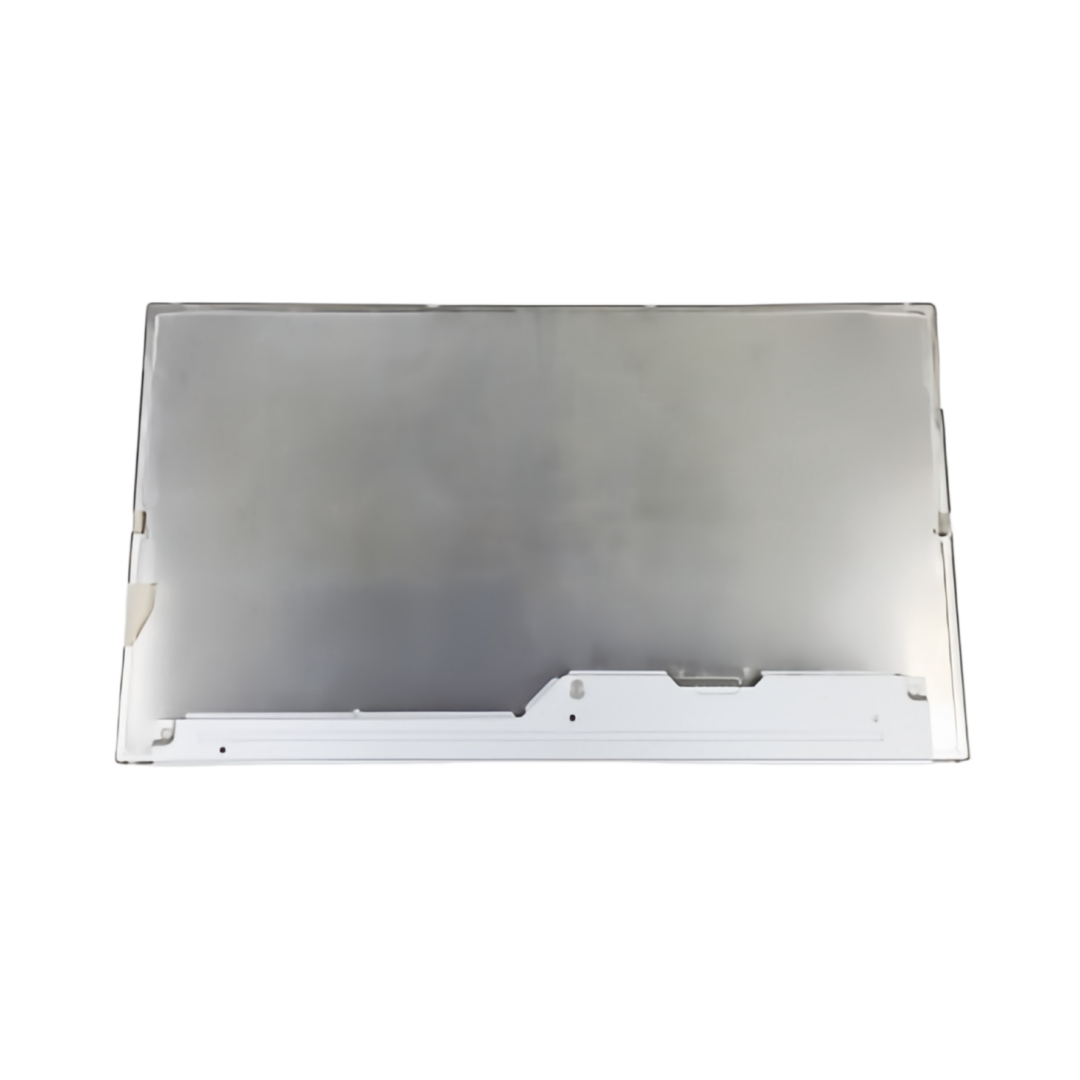

24.1”New Original lcd screen module M241HTN01.7 FHD 1920*1080 300HZ
$180.00

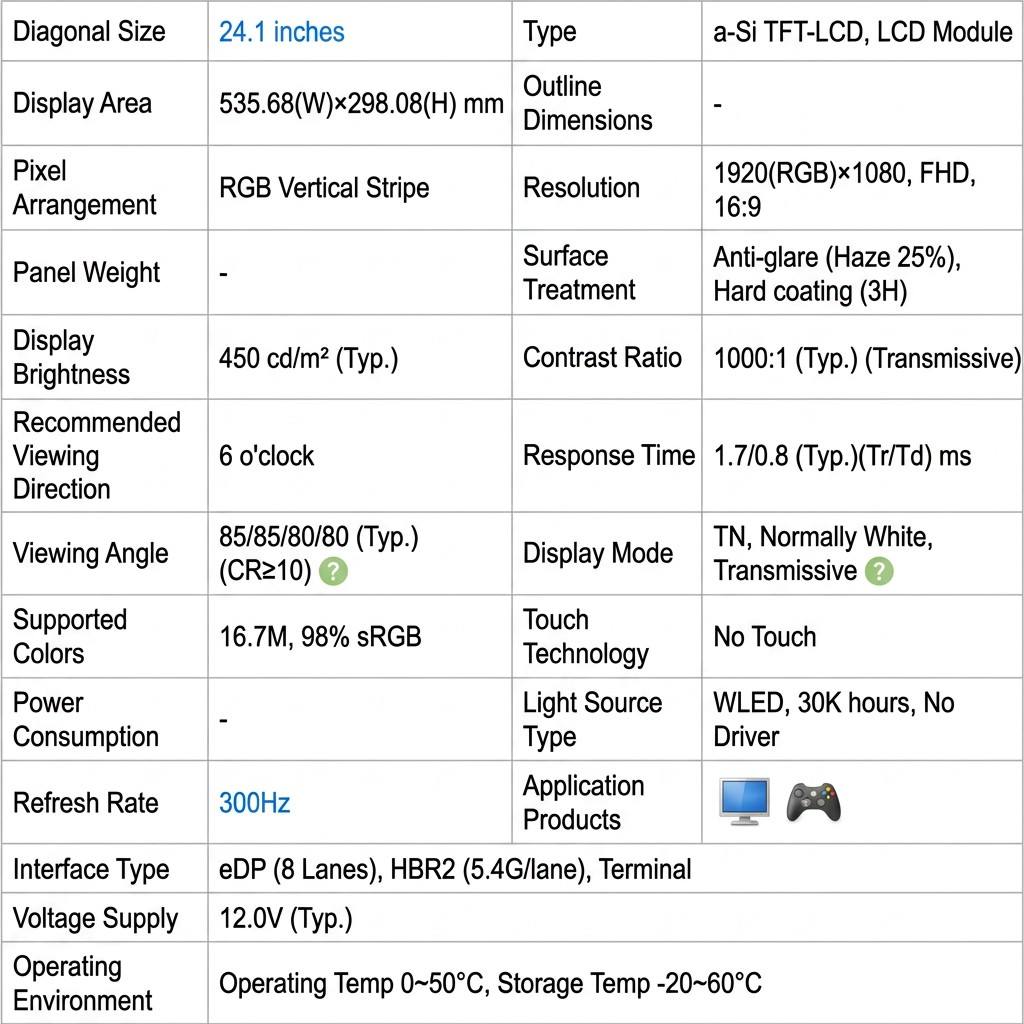

M241HTN01.7 is a 24.1-inch a-Si TFT-LCD LCD module product launched by AU. It is equipped with WLED backlight, no backlight driver, and no touch. The working temperature of this product is 0-50 ° C, the storage temperature is -20~60 ° C, and the vibration resistance is 1.5G (14.7 m/s ²). Its typical features are summarized as: sRGB, white LED backlight, surface matte, 300Hz, 2ms on-off, sRGB 98%, 450nits, eDP 4L HBR2. Based on its feature screen library, this model is recommended for use in computer monitors, and parameters were first established for this model on March 27, 2025. M241HTN01.7 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in a vertical RGB stripe pattern. Its display area size is 535.68 (width) × 298.08 (height) mm, with a surface treatment of matte (Haze 25%) and Hard coating (3H). In terms of backlight, this product adopts WLED light emission, with a lifespan of 30K hours for the light source, and does not include backlight driver. M241HTN01.7 adopts eDP (8 Lanes) signal interface and terminal connection, with a screen driving voltage of 12.0V (Typ.). Its typical vertical refresh rate Fv is 300Hz.
