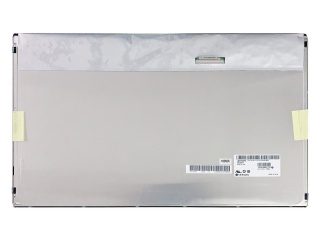

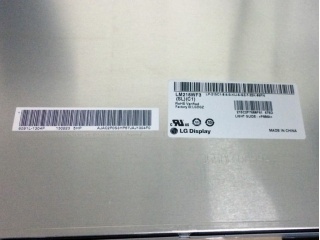

21.5”New Original LCD screen LM215WF3-SLC1 FHD 1920*1080 75HZ

$58.00

19 Views

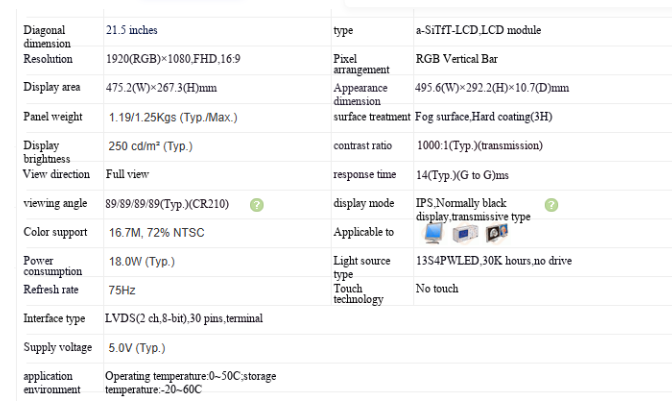

The display resolution of LM215WF3-SLC1 is 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width: height), and the pixels are arranged vertically in RGB stripes. Its display area size is 475.2 (width) × 267.3 (height) mm, and its appearance size is 495.6 (width) × 292.2 (height) × 10.7 (thickness) mm. The visible size is 478.8 (width) × 271.3 (height) mm, and the surface treatment is matte, Hard coating (3H)， The net weight of the product is 1.19/1.25kgs (Typ./Max.). In terms of backlight, this product uses a 13S4P WLED side entry light source (bottom) with a lifespan of 30K hours and does not include backlight drivers. LM215WF3-SLC1 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

Get a Quote

Category :

21.5-inch LCD screen

Description

Related Products

21.5" New LCD screen model M215HAN01.1 IPS FHD

21.5" New LCD screen model M215HGE-L21 IPS FHD

The M215HGE-L21 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 476.64 (width) × 268.11 (height) mm, the external dimensions are 495.6 (width) × 292.2 (height) × 11.5 (thickness) mm, the visible dimensions are 479.8 (width) × 271.3 (height) mm, the surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 1.91/2.10Kgs (Typ./Max.). In terms of backlight, this product adopts a side entry light source (right side) with 11S4P WLED emission, and the service life of the light source is 40K hours, without backlight driver. M215HGE-L21 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

21.5" New LCD screen model M215HGE-L23 IPS FHD

The M215HGE-L23 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 476.64 × 268.11 (width × height) mm, the visible size is 479.8 × 271.3 (width × height) mm, the appearance size is 495.6 (width) × 292.2 (height) × 11.5 (thickness) mm, the surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 2.10/2.16Kgs (Typ./Max.). In terms of backlight, this product adopts a side entry light source (right side) with 11S4P WLED emission, and the service life of the light source is 40K hours, without backlight driver. M215HGE-L23 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

21.5" New LCD screen model M215HGK-L30 IPS FHD

The M215HGK-L30 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 476.064 × 267.786 (width × height) mm, visible size is 489.7 × 281.4 (width × height) mm, appearance size is 502.7 × 298.5 (width × height) × 15.06 (thickness) mm, surface treatment is Hard coating (6H), and the net weight of the product is 2.14 ± 0.08Kg. In terms of backlight, this product adopts a side entry light source (left) with 2 strings WLED emission, and the service life of the light source is 30K hours, without backlight driver. The M215HGK-L30 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

21.5" New LCD screen model LM215WFZ-S1A1 IPS FHD

21.5" New LCD screen model LM215WF9-SSC3 IPS FHD

Typical features are summarized as follows: sRGB, borderless 3-side, white LED backlight, inverted terminals, matte surface, 3-side borderless, Panel type: Reverse type. Based on its features, this model is recommended for use in products such as computer monitors.

21.5" New LCD screen model LM215WF9-SSA2 IPS FHD

The 21.5-inch LCD module product using a-Si TFT-LCD technology is equipped with WLED backlight, no backlight driver, and no touch.
