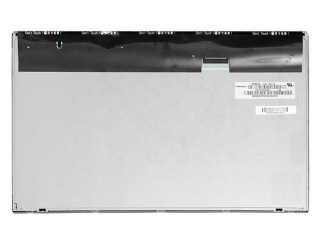

19.5”New Original LCD screen M195FGE-L20 FHD 1600*900 75HZ

$45.00
The M195FGE-L20 has a display resolution of 1600 (RGB) × 900 (HD+), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 432 × 239.76 (width × height) mm, the visible size is 435.3 × 243.06 (width × height) mm, the appearance size is 452 × 263 (width × height) × 11 (thickness) mm, the surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 1.43/1.50Kgs (Typ./Max.). In terms of backlight, this product uses a 10S4P WLED side entry light source (on the right) with a lifespan of 40K hours and does not include backlight drivers. The M195FGE-L20 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.
