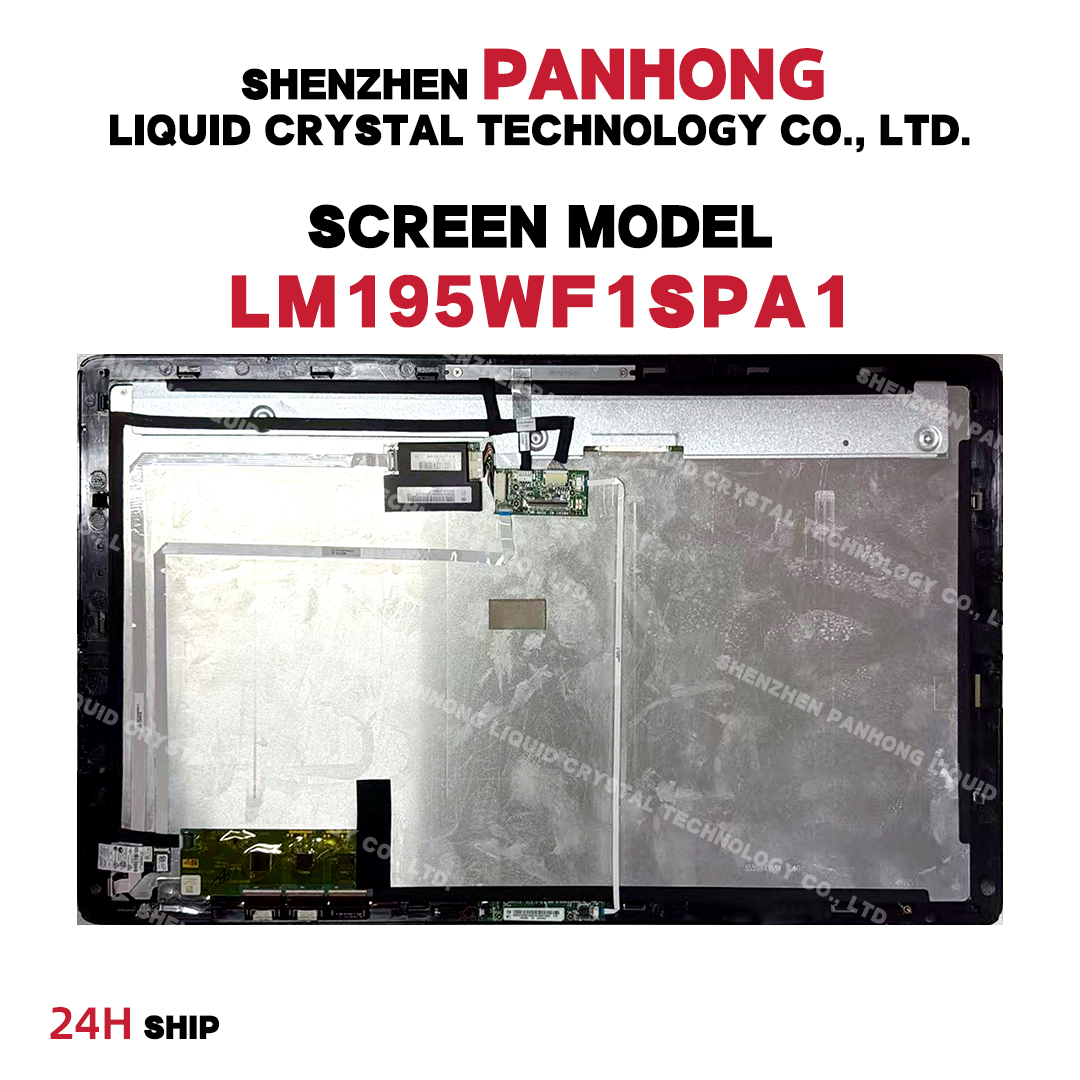

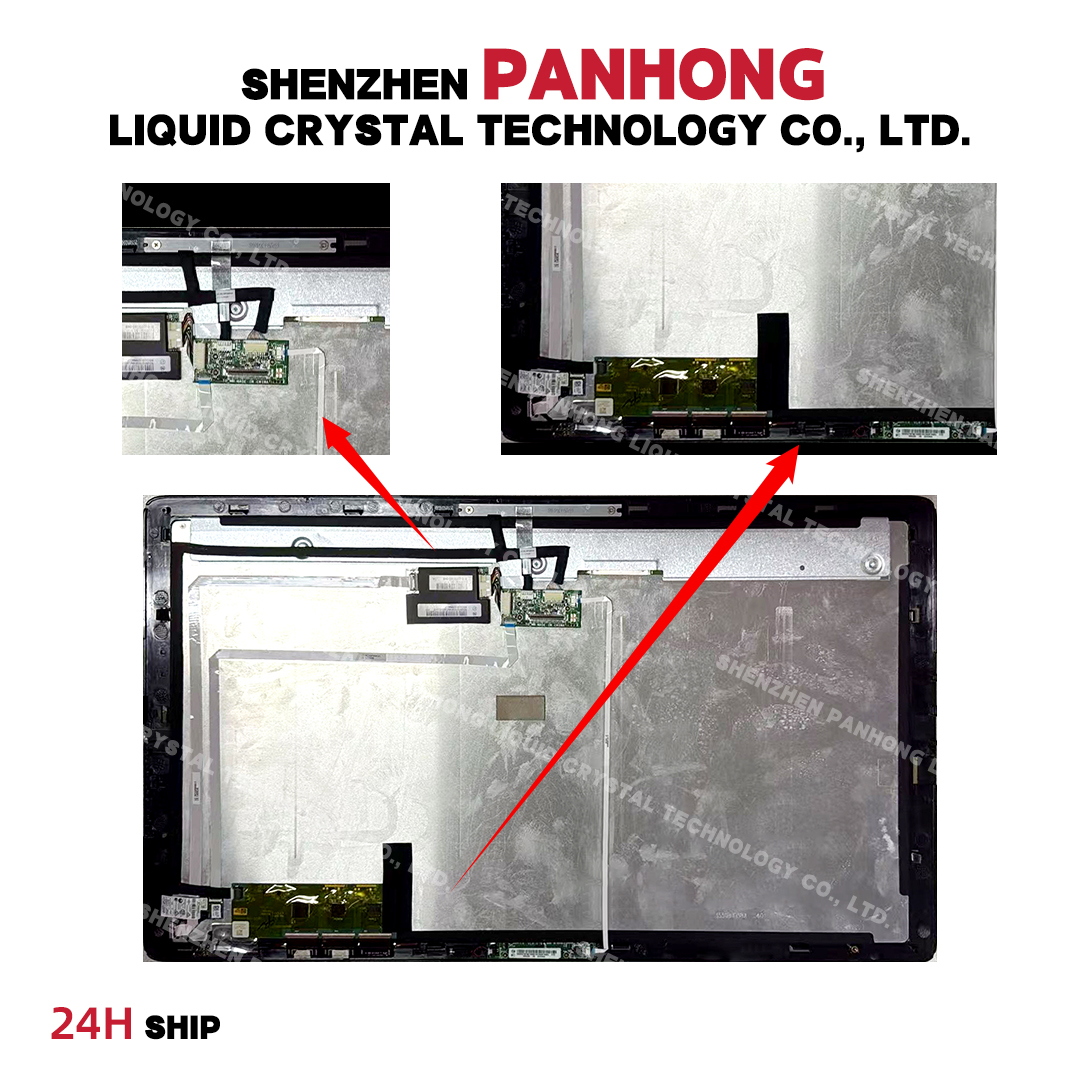

19.5" New LCD screen model LM195WF1-SPA1 IPS FHD

$45.00

30 Views

Typical features are summarized as follows: white LED backlight, terminal assembly, and matte surface. Based on its features, this model is recommended for use in products such as computer monitors.

Get a Quote

Category :

19.5-inch LCD screen

Description

The display resolution of LM195WF1-SPA1 is 1920 (RGB) × 1080 (FHD), with an aspect ratio of 17:9 (width: height), and the pixels are arranged vertically in RGB stripes. Its display area size is 433.73 (width) × 236.24 (height) mm, the appearance size is 452 (width) × 263 (height) × 6.8 (thickness) mm, the visible size is 437.0 (width) × 239.5 (height) mm, and the surface treatment is matte, Hard coating (3H)， The net weight of the product is 830/870g (Typ./Max.). In terms of backlight, this product uses a 15S3P WLED side entry light source (on the right) with a lifespan of 30K hours and does not include backlight drivers. LM195WF1-SPA1 adopts eDP (2 Lanes) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.
