New Original 10.1-inch lcd screen module AV101HDM-N10 1280*720 60HZ

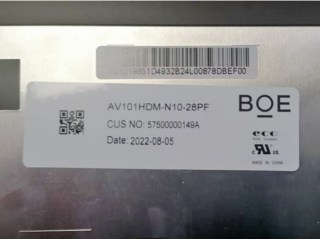

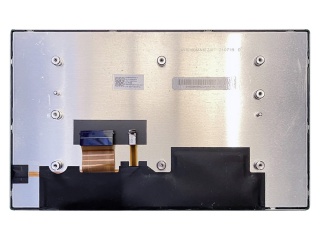

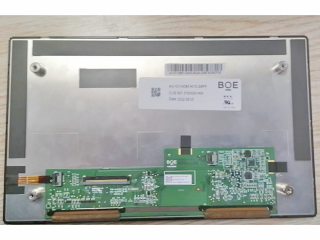

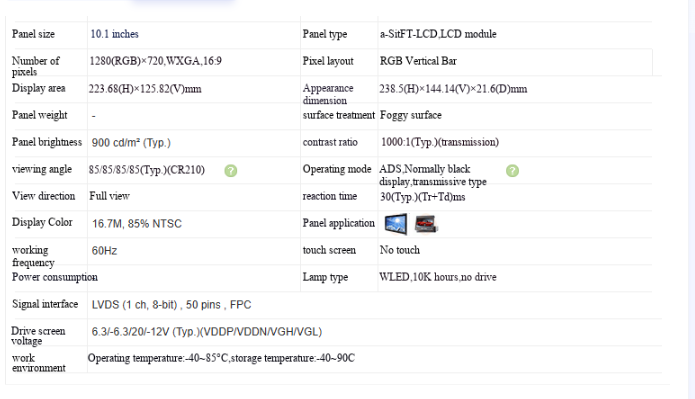

AV101HDM-N10 (alias: COG-SHTPT006-01) is a 10.1-inch LCD module product launched by BOE Technology Group Co., Ltd. (BOE), which adopts a-Si TFT-LCD technology. It is equipped with WLED backlight, no backlight driver, no touch, and has been bonded with HX8290-B-LT * 2 driver IC. According to the product specification book of Rev. P0 released by BOE on May 30, 2019, AV101HDM-N10 has a display resolution of 1280 (RGB) × 720 (WXGA), aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 223.68 × 125.82 (width × height) mm, the visible size is 226.68 × 128.52 (width × height) mm, and the appearance size is 238.5 × 144.14 (width × height) × 21.6 (thickness) mm, with a matte surface treatment. In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 10K hours and does not include backlight drivers. AV101HDM-N10 adopts LVDS (1 ch, 8-bit) signal interface, with a total of 50 pins, connected by FPC, and a screen driving voltage of 6.3/-6.3/20/-12V (Typ.) (VDDP/VDDN/VGH/VGL). Its typical vertical refresh rate Fv is 60Hz.
