31”New Original lcd screen module LB310FTM-SPA1 FHD 4200*2800 60HZ

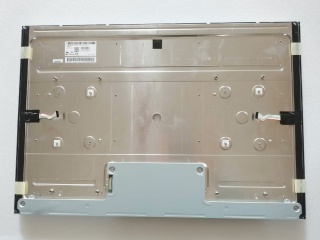

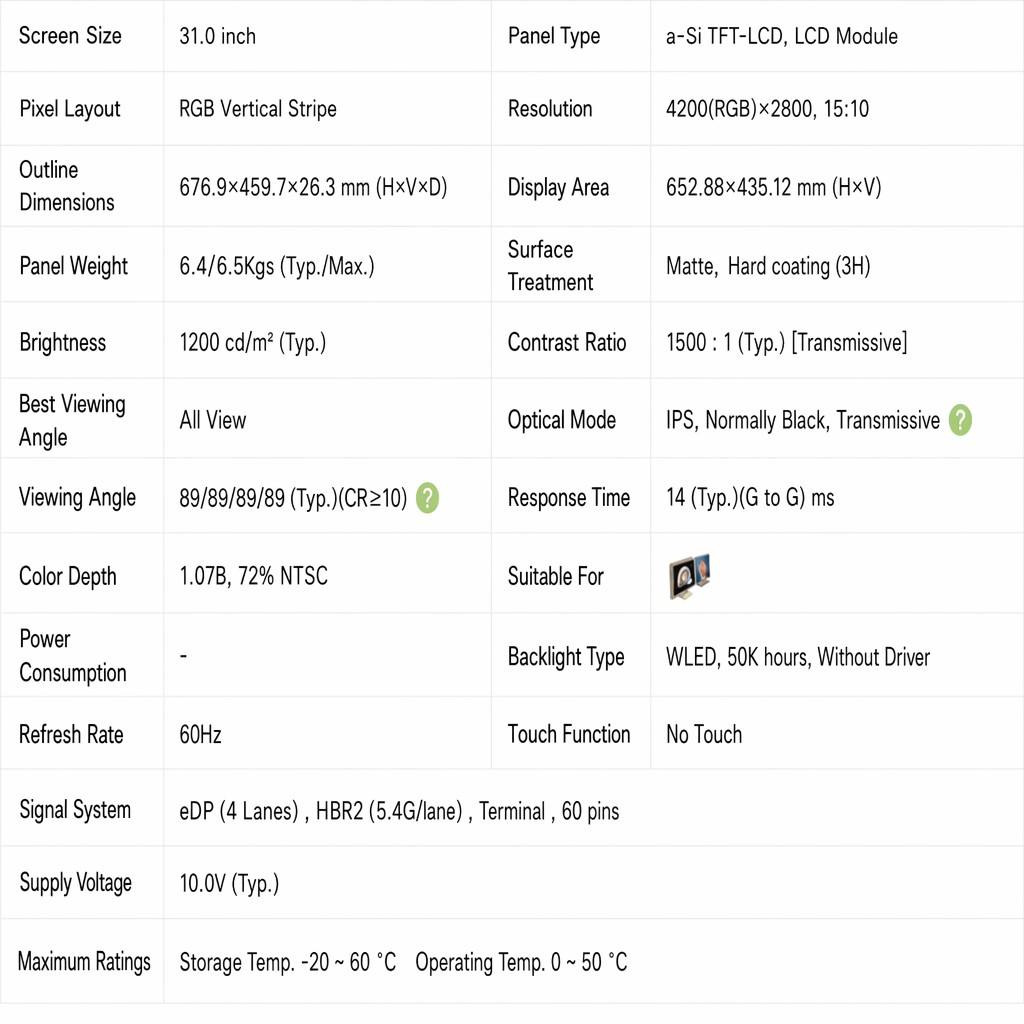

LB310FTM-SPA1 is a 31.0-inch a-Si TFT-LCD LCD module product launched by LG Display. It is equipped with WLED backlight, no backlight driver, and no touch. This product has a working temperature of 0-50 ° C and a storage temperature of -20~60 ° C. Its typical feature screen library is summarized as sRGB, ultra-high brightness, white LED backlight, lifespan greater than 50000 hours, 10 bit grayscale, surface matte, and ATW Polarizer. According to the product specification sheet with version number Ver0.3 released by LG Display on March 5, 2019, the LB310FTM-SPA1 has a display resolution of 4200 (RGB) × 2800, an aspect ratio of 15:10 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 652.88 (width) × 435.12 (height) mm, and its appearance size is 676.9 (width) × 459.7 (height) × 26.3 (thickness) mm. The visible size is 656.1 (width) × 438.508 (height) mm, and the surface treatment is matte, Hard coating (3H)， The net weight of the product is 6.4/6.5Kgs (Typ./Max.). In terms of backlighting, this product uses a WLED direct light source with a lifespan of 50K hours and does not include backlight drivers. LB310FTM-SPA1 adopts eDP (4 Lanes) signal interface, with a total of 60 pins, connected by terminals, and a screen driving voltage of 10.0V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
