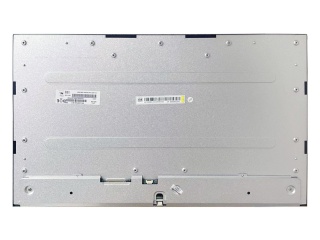

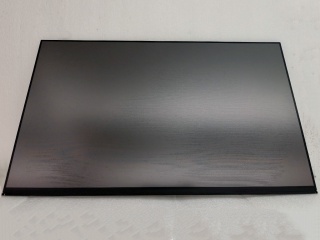

The MV238FHM-K10 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 527.04 × 296.46 (width × height) mm, and its appearance size is 535.12 (width) × 313 (height) × 12.76 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 2.23Kg (Typ.). In terms of backlight, this product adopts a side entry light source (bottom) with 4 strings WLED emission, without backlight driver. MV238FHM-K10 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

The display resolution of LM238WF5-SSA3 is 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width: height), and the pixels are arranged vertically in RGB stripes. Its display area size is 527.04 × 296.46 (width × height) mm, and its appearance size is 534.84 (width) × 312.93 (height) × 14 (thickness) mm. The surface treatment is matte, Hard coating (3H)， The net weight of the product is 1.92/2.01kgs (Typ./Max.). In terms of backlight, this product adopts a 15S4P WLED side entry light source (bottom) with a lifespan of 30K hours, without backlight driver. LM238WF5-SSA3 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

The display resolution of LM238WF5-SSD1 is 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width: height), and the pixels are arranged vertically in RGB stripes. Its display area size is 527.04 (width) × 296.46 (height) mm, with a matte surface treatment, Hard coating (3H)， The net weight of the product is 1.92/2.01kgs (Typ./Max.). In terms of backlighting, this product uses a WLED side entry light source (bottom) with a lifespan of 30K hours and does not include backlight drivers. LM238WF5-SSD1 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

The display resolution of LM238WF5-SSG7 is 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width: height), and the pixels are arranged in RGB vertical stripes. Its display area size is 527.04 × 296.46 (width × height) mm, and its appearance size is 535.12 (width) × 313.12 (height) × 12.76 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 1.93/2.03Kgs (Typ./Max.). In terms of backlight, this product adopts a 15S4P WLED side entry light source (bottom) with a lifespan of 30K hours, without backlight driver. LM238WF5-SSG7 adopts LVDS (2 ch, 8-bit) signal interface, terminal connection, and screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

The display resolution of LM238WF5-SSG1 is 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width: height), and the pixels are arranged vertically in RGB stripes. Its display area size is 527.04 × 296.46 (width × height) mm, and its appearance size is 535.12 (width) × 313.12 (height) × 14 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 1.93/2.03Kgs (Typ./Max.). In terms of backlight, this product adopts a 15S4P WLED side entry light source (bottom) with a lifespan of 30K hours, without backlight driver. LM238WF5-SSG1 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

The display resolution of LM238WF5-SSC1 is 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width: height), and the pixels are arranged vertically in RGB stripes. Its display area size is 527.04 × 296.46 (width × height) mm, and its appearance size is 541.31 (width) × 316.95 (height) mm. The surface treatment is mirror finish (Haze 0%), Hard coating (3H), and the net weight of the product is 2.25/2.36Kgs (Typ./Max.). In terms of backlight, this product adopts a 15S4P WLED side entry light source (bottom) with a lifespan of 30K hours, without backlight driver. LM238WF5-SSC1 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

The display resolution of LM238WF5-SSA1 is 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width: height), and the pixels are arranged vertically in RGB stripes. Its display area size is 527.04 × 296.46 (width × height) mm, and its appearance size is 535.24 (width) × 313.18 (height) × 14 (thickness) mm. The surface treatment is matte, Hard coating (3H)， The net weight of the product is 1.92/2.01kgs (Typ./Max.). In terms of backlight, this product adopts a 15S4P WLED side entry light source (bottom) with a lifespan of 30K hours, without backlight driver. LM238WF5-SSA1 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

The LM238WF5-SSK2 has a display resolution of 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width:height) and uses RGB vertical stripe pixel arrangement. Its display area measures 527.04 × 296.46 (width × height) mm, while the outer dimensions are 535.12 (width) × 313.12 (height) × 12.95 (thickness) mm. The surface treatment features a matte finish (Haze 25%) and hard coating (3H), with a net product weight of 2.20Kgs (Typ.). For backlighting, this product employs a side-illuminated WLED light source (bottom-mounted) with a 15S4P configuration, offering a lifespan of 30K hours and excluding the backlight driver. The LM238WF5-SSK2 utilizes an LVDS (2 ch, 8-bit) signal interface with a total of 30 pins, featuring terminal connections and a drive voltage of 5.0V (Typ.). Its typical vertical refresh rate (Fv) is 75Hz.
