The LB238WFM-SSA1 (alias: LB238WFM (SS) (A1)) launched by LG Display is a 23.8-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight, no backlight driver, and no touch. Screen Library summarizes its typical features as follows: borderless edges on 3 sides, white LED backlight, inverted terminals, matte surface, 350 nit, 72%, 1000:1, LVDs, ATW polarizer, Neo l (3-side borderless)。 Its working temperature is 0~50 ° C and storage temperature is -20~60 ° C. This model is suitable for industrial, medical imaging, and healthcare applications. According to the product specification book with version number Ver0.0 released by LG Display on March 12, 2019, the LB238WFM-SSA1 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 527.04 × 296.46 (width × height) mm, and its appearance size is 535 (width) × 313 (height) × 12.9 (thickness) mm. The surface treatment is matte (Haze 44%), Hard coating (3H), and the net weight of the product is 1.91/2.01kgs (Typ./Max.). In terms of backlight, this product adopts a 15S4P WLED side entry light source (bottom) with a lifespan of 30K hours, without backlight driver. LB238WFM-SSA1 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 60Hz.

SG2381B01-1 is a 23.8-inch LCD glass product launched by Shenzhen Huaxing Optoelectronics Technology Co., Ltd. (CSOT) using a-Si TFT-LCD technology. It has no backlight, no touch, and has been bonded with 6 source chips driver IC. According to the product specification book with version number 20241021 released by CSOT on October 21, 2024, SG2381B01-1 Ver.2. E has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged vertically in RGB stripes. Its display area size is 527.04 × 296.46 (width × height) mm, and its appearance size is 534.04 × 308.16 (width × height) × 1.1 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 433g (Typ.). It uses a glass substrate of 0.40+0.40mm. This product has no backlight. SG2381B01-1 Ver.2. E adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 100Hz.

The MV238FHM-N62 launched by BOE is a 23.8-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight, no backlight driver, and no touch. The typical features of the screen library are sRGB, borderless on 3 sides, white LED backlight, inverted terminals, matte surface, and LBL. Its working temperature is 0~50 ° C and storage temperature is -20~60 ° C. This model is suitable for use in computer monitors. According to the product specification document with version number Rev. A released by BOE on March 10, 2021, the MV238FHM-N62 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 527.04 × 296.46 (width × height) mm, and its appearance size is 535 (width) × 313 (height) × 13 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 2.20Kgs (Typ.). In terms of backlight, this product uses a 20S4P WLED side entry light source (bottom) with a lifespan of 30K hours, without backlight driver. MV238FHM-N62 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

The LM238WF5-SSK2 (alias: LM238WF5 (SS) (K2)) launched by LG Display is a 23.8-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight and has no backlight driver, In-Cell Touch。 The typical features summarized by the screen library are: sRGB, 3-side borderless, touch screen, white LED backlight, inverted terminals, matte surface, 3-side borderless, LBL. Its working temperature is 0~50 ° C and storage temperature is -20~60 ° C. This model is suitable for use in computer monitors. According to the product specification sheet with version number Ver0.0 released by LG Display on April 30, 2021, the LM238WF5-SSK2 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 527.04 × 296.46 (width × height) mm, and its appearance size is 535.12 (width) × 313.12 (height) × 12.95 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 2.20Kgs (Typ.). In terms of backlight, this product adopts a 15S4P WLED side entry light source (bottom) with a lifespan of 30K hours, without backlight driver. LM238WF5-SSK2 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

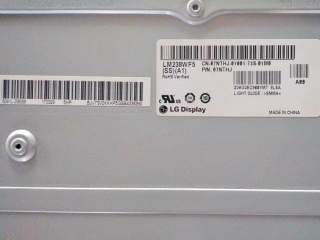

LM238WF5-SSK1 (alias: LM238WF5 (SS) (K1)) is a 23.8-inch a-Si TFT-LCD LCD module product launched by LG Display. It is equipped with WLED backlight and has no backlight driver, In-Cell Touch。 This product has a working temperature of 0-50 ° C and a storage temperature of -20~60 ° C. Its typical features are summarized as sRGB, 3-side borderless, with touch screen, white LED backlight, inverted terminals, matte surface, 3-side borderless, LBL. Based on its feature screen library, this model is recommended for use in products such as computer monitors. According to the product specification sheet with version number Ver1.0 released by LG Display on October 23, 2020, the LM238WF5-SSK1 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 527.04 (width) × 296.46 (height) mm, and its appearance size is 535.12 (width) × 313.12 (height) × 12.6 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 2.20/2.31Kg (Typ./Max.). In terms of backlight, this product adopts a 15S4P WLED side entry light source (bottom) with a lifespan of 30K hours, without backlight driver. LM238WF5-SSK1 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

LM238WF2-SSK1 (alias: LM238WF2 (SS) (K1)) is a 23.8-inch a-Si TFT-LCD LCD module product launched by LG Display. It is equipped with WLED backlight, no backlight driver, and no touch. The working temperature of this product is 0-50 ° C, and the storage temperature is -20~60 ° C. Its typical features are summarized as: 3-side frameless, white LED backlight, inverted terminals, matte surface, and 3-side borderless. Based on its feature screen library, this model is recommended for use in products such as computer monitors. According to the product specification sheet with version number Ver1.1 released by LG Display on May 31, 2016, the LM238WF2-SSK1 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 527.04 (width) × 296.46 (height) mm, and its appearance size is 535 (width) × 313 (height) × 13.2 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 1.91/2.01kgs (Typ./Max.). In terms of backlight, this product adopts a 15S4P WLED side entry light source (bottom) with a lifespan of 30K hours, without backlight driver. LM238WF2-SSK1 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

The DV238FHM-N11 launched by BOE is a 23.8-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight, no backlight driver, and no touch. Summarize its typical features as sRGB, high brightness, white LED backlight, inverted terminals, and matte surface. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.5G (14.7 m/s ²). This model is suitable for use in digital signage. According to the intelligence obtained by the screen library, this product was mass-produced in Q3 2018 and is currently in mass production status. According to the product specification document with version number Rev. O released by BOE on October 18, 2018, the DV238FHM-N11 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 527.04 × 296.46 (width × height) mm, the visible size is 530.2 × 299.6 (width × height) mm, the appearance size is 543 (width) × 317.4 (height) × 11.4 (thickness) mm, and the surface treatment is matte, Hard coating (3H)， The net weight of the product is 2.39Kg (Typ.). In terms of backlight, this product adopts a side entry light source (bottom) with 4 strings WLED emission, and the service life of the light source is 30K hours, without backlight driver. DV238FHM-N11 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 60Hz.

The LM238WR2-SPE1 (alias: LM238WR2 (SP) (D1)) launched by LG Display is a 23.8-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight, no backlight driver, and no touch. The typical features of the screen library are DCI-P3, sRGB, high brightness, white LED backlight, inverted terminals, 10 bit grayscale, surface matte, DCI98%. Its working temperature is 0-50 ° C and storage temperature is -20~60 ° C. This model is suitable for use in computer monitors, industrial, and medical imaging. According to the product specification sheet with version number Ver0.0 released by LG Display on August 26, 2024, the LM238WR2-SPE1 has a display resolution of 3840 (RGB) × 2160 (UHD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 527.04 × 296.46 (width × height) mm, visible size is 529.7 × 299.7 (width × height) mm, appearance size is 544.7 (width) × 328.2 (height) × 14.3 (thickness) mm, surface treatment is matte (Haze 3%), Hard coating (2H), reflectivity 2.0% (Typ.), net weight of the product is 2.19/2.3Kgs (Typ./Max.). In terms of backlight, this product uses 14S4P × 2CN WLED side entry light sources (top and bottom), with a lifespan of 30K hours and no backlight driver included. LM238WR2-SPE1 adopts eDP (4 Lanes) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 10.0V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
