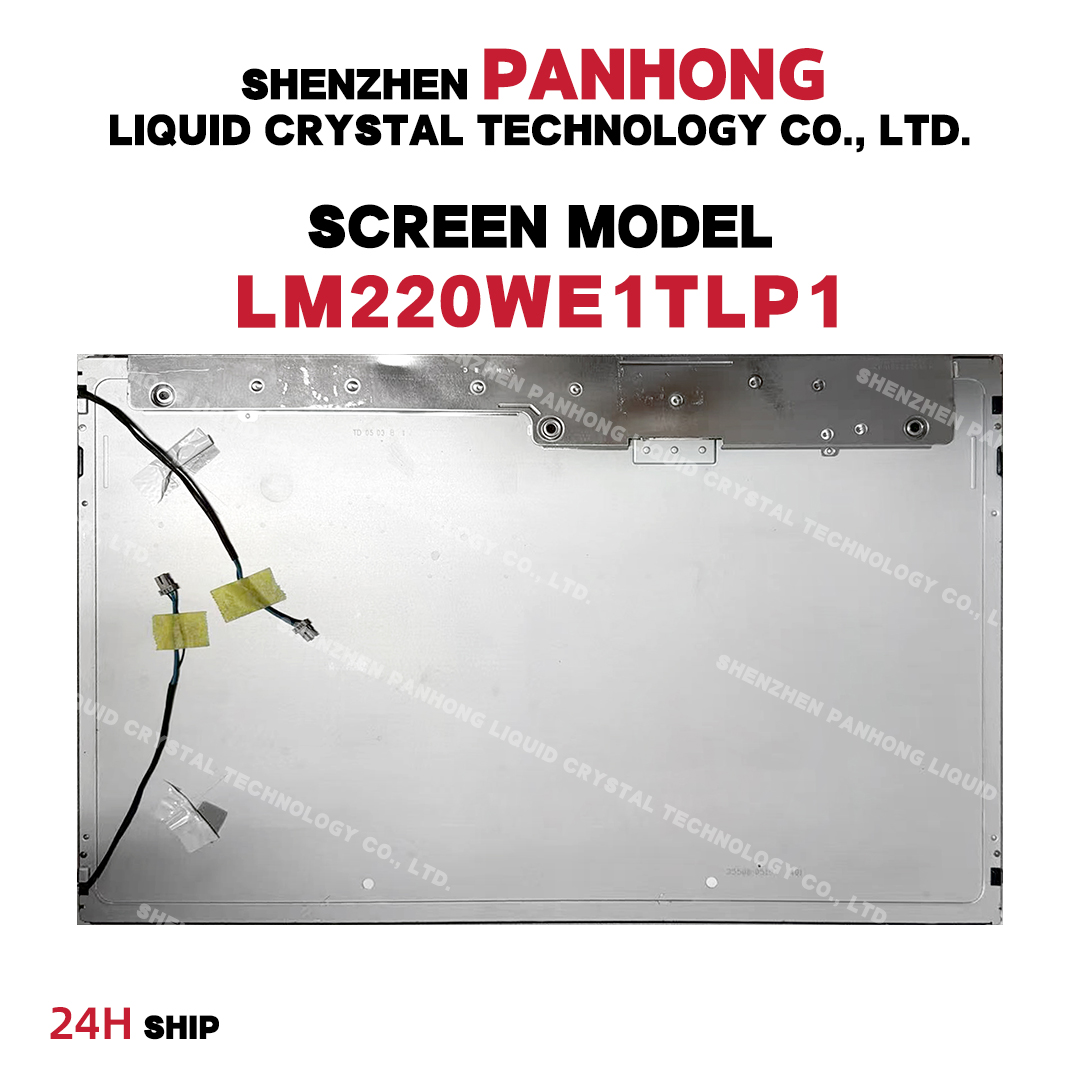

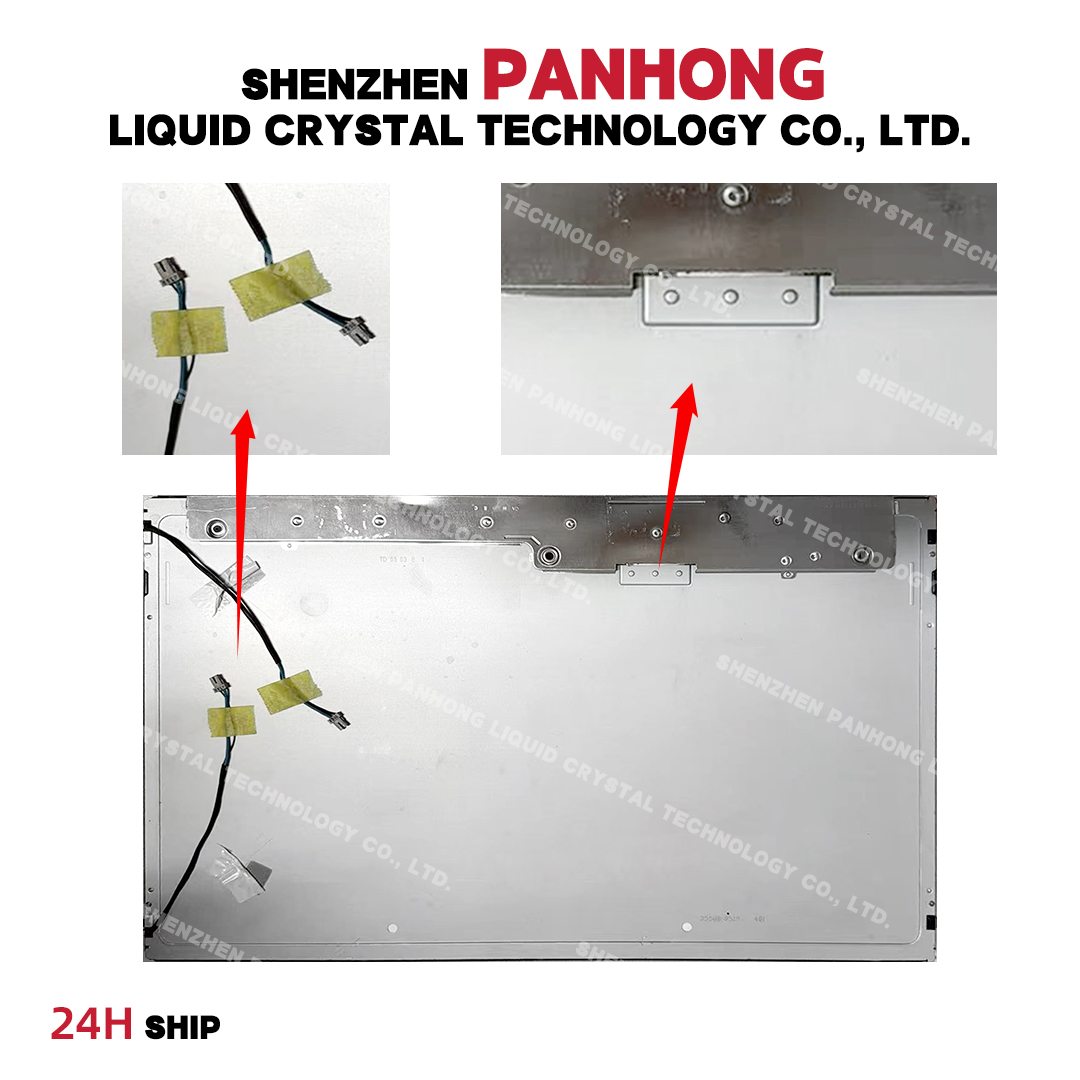

22" New LCD screen model LM220WE1-TLP1 IPS FHD

$48.00

28 Views

The typical characteristics are summarized as: a lifespan of over 50000 hours and a matte surface. Based on its features, this model is recommended for use in products such as computer monitors.

Get a Quote

Category :

22-inch LCD screen

Description

The display resolution of LM220WE1-TLP1 is 1680 (RGB) × 1050 (WSXGA+), with an aspect ratio of 16:10 (width: height), and the pixels are arranged in vertical RGB stripes. Its display area size is 473.76 (width) × 296.1 (height) mm, and its appearance size is 493.7 (width) × 320.1 (height) × 15 (thickness) mm. The visible size is 477.7 (width) × 300.1 (height) mm, and the surface treatment is matte, Hard coating (3H)， The net weight of the product is 2.35Kg (Typ.). In terms of backlight, this product uses 2 pieces of CCFL emitting side entry light sources (top and bottom), with a lifespan of 50K hours and no backlight driver included. LM220WE1-TLP1 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

Related Products

22" New LCD screen model M220Z1-L10 IPS FHD

The M220Z1-L10 has a display resolution of 1680 (RGB) × 1050 (WSXGA+), an aspect ratio of 16:10 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 473.76 (width) × 296.1 (height) mm, and its appearance size is 493.7 (width) × 320.1 (height) × 17 (thickness) mm. The visible size is 477.7 (width) × 300.1 (height) mm, and the surface treatment is matte (Haze 25%), hard coating (3H), and the net weight of the product is 2.53/2.58Kg (Typ./Max.). In terms of backlight, this product uses 2 pieces of CCFL emitting side entry light sources (top and bottom), with a lifespan of 50K hours and no backlight driver included. M220Z1-L10 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.
