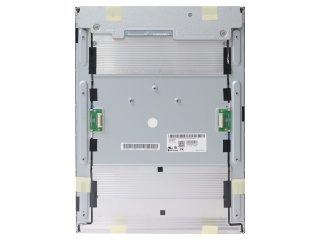

21.3”New Original lcd screen module LB213QX2-SL01 FHD 1536*2048 60HZ

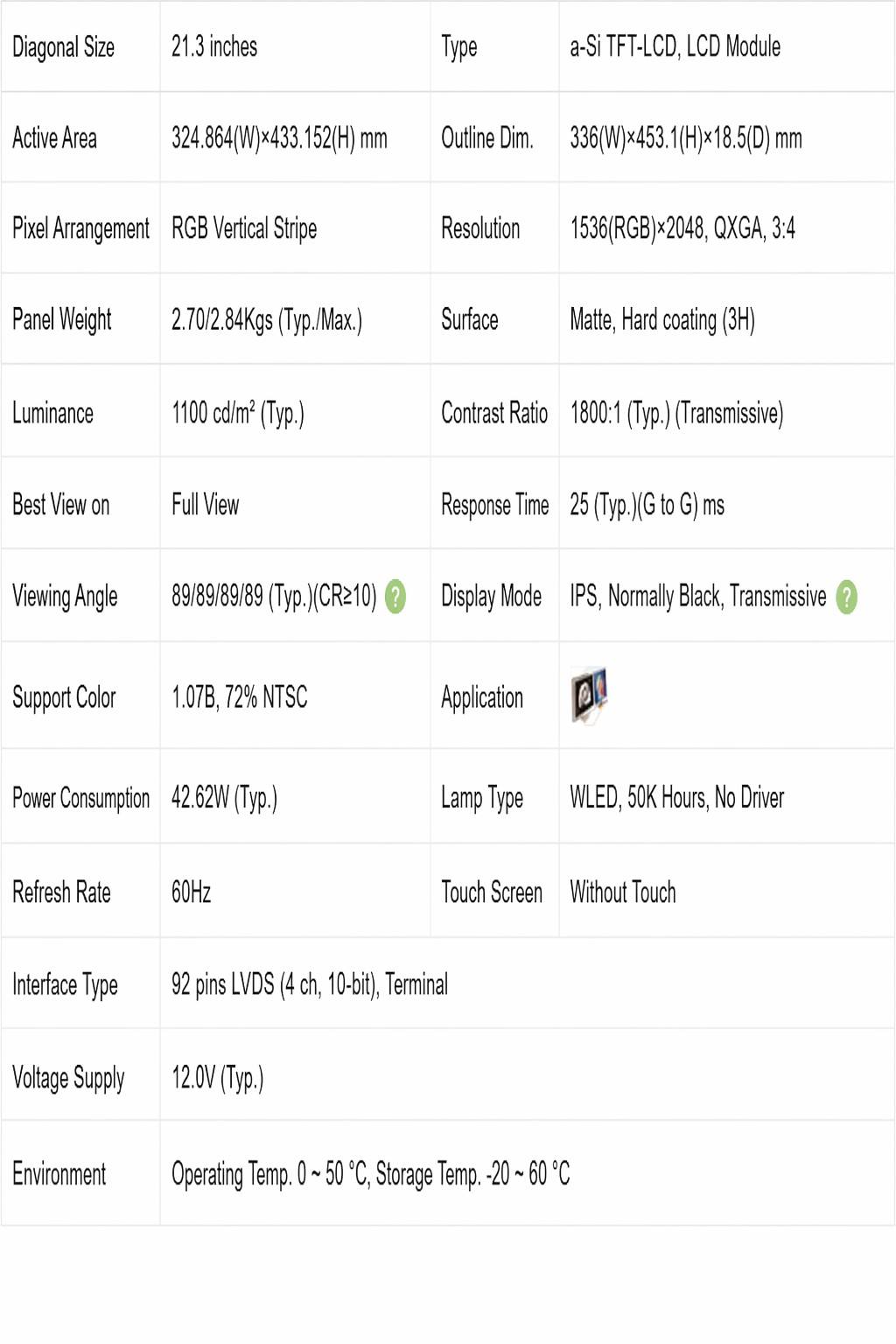

LB213QX2-SL01 (alias: LB213QX2 (SL) (01)) is a 21.3-inch a-Si TFT-LCD LCD module product launched by LG Display. It is equipped with WLED backlight, no backlight driver, and no touch. This product has a working temperature of 0-50 ° C and a storage temperature of -20~60 ° C. Its typical feature screen library is summarized as sRGB, portrait mode, ultra-high brightness, white LED backlight, lifespan greater than 50000 hours, 10 bit grayscale, surface matte, ATW Polarizer, Portrait. Based on its feature screen library, this model is recommended for use in medical imaging and other products. According to the product specification sheet with version number Ver0.0 released by LG Display on November 17, 2020, the LB213QX2-SL01 has a display resolution of 1536 (RGB) × 2048 (QXGA), an aspect ratio of 3:4 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 324.864 (width) x 433.152 (height) mm, and its appearance size is 336 (width) x 453.1 (height) x 18.5 (thickness) mm. The surface treatment is matte, Hard coating (3H)， The net weight of the product is 2.70/2.84Kgs (Typ./Max.). In terms of backlight, this product uses a WLED side entry light source with a lifespan of 50K hours and does not include backlight drivers. LB213QX2-SL01 adopts LVDS (4 ch, 10 bit) signal interface, with a total of 92 pins, connected by terminals, and a screen driving voltage of 12.0V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
