The LTM200KL01 has a display resolution of 1600 (RGB) × 900 (HD+), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 442.8 × 249.075 (width × height) mm, and its appearance size is 462.8 (width) × 272 (height) × 10.4 (thickness) mm. The surface treatment is matte (Haze 25%), and the net weight of the product is 1.58Kg (Max.). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 40K hours and does not include backlight drivers. LTM200KL01 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

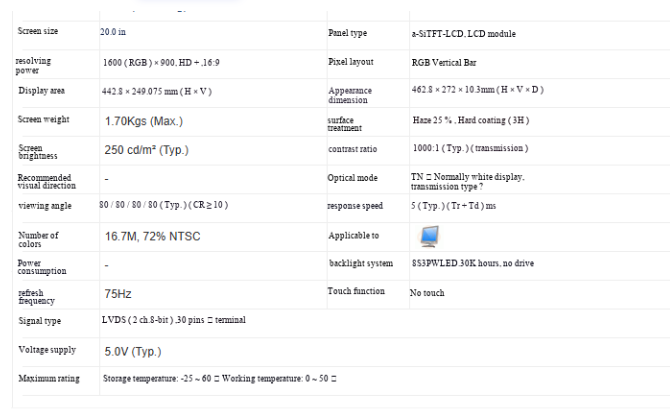

The LTM200KT12 has a display resolution of 1600 (RGB) × 900 (HD+), with an aspect ratio of 16:9 (width:height) and uses RGB vertical stripe pixel arrangement. Its display area measures 442.8 × 249.075 (width × height) mm, with a visible size of 446.8 × 253.2 (width × height) mm. The exterior dimensions are 462.8 (width) × 272 (height) × 10.3 (thickness) mm, featuring a matte (Haze 25%) finish and hard coating (3H). The product's net weight is 1.70Kgs (Max.). For backlighting, this product employs a side-illuminated WLED light source (right side) with a 9S3P configuration, offering a lifespan of 40K hours, excluding backlight driver. The LTM200KT12 utilizes an LVDS (2 ch, 8-bit) signal interface with a total of 30 pins, connected via terminals, and operates at a driving voltage of 5.0V (Typ.). Its typical vertical refresh rate (Fv) is 75Hz.

The LTM200KP01 has a display resolution of 1600 (RGB) × 900 (HD+), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 442.8 (width) × 249.075 (height) mm, the external dimensions are 462.8 (width) × 272 (height) × 17.5 (thickness) mm, the visible dimensions are 446.8 (width) × 253.2 (height) mm, the surface treatment is matte (Haze 44%), Hard coating (3H), and the net weight of the product is 2.60Kgs (Max.). In terms of backlight, this product uses 4 pieces of CCFL emitting side entry light sources (top and bottom), with a lifespan of 50K hours and no backlight driver included. LTM200KP01 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

20" New LCD screen model G200HJJ-L01 IPS FHD
