LM190E0A-SLD1 (alias: LM190E0A (SL) (D1)) is a 19.0-inch a-Si TFT-LCD liquid crystal module product launched by LG Display. It is equipped with WLED backlight, no backlight driver, and no touch. The working temperature of this product is 0-50 ° C, the storage temperature is -20~60 ° C, and the vibration resistance is 1.0G (9.8 m/s ²). Its typical feature screen library is summarized as: white LED backlight, terminal mounting, surface matte, Energy Star 7.0 Compliance. Based on its feature screen library, this model is recommended for use in computer monitors, digital signage, and other products. According to the product specification sheet with version number Ver1.0 released by LG Display on May 24, 2016, the LM190E0A-SLD1 has a display resolution of 1280 (RGB) × 1024 (SXGA), an aspect ratio of 5:4 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 376.32 (width) × 301.056 (height) mm, the appearance size is 396 (width) × 324 (height) × 10.4 (thickness) mm, the visible size is 378.8 (width) × 303.0 (height) mm, and the surface treatment is matte, Hard coating (3H)， The net weight of the product is 1.46/1.54kgs (Typ./Max.). In terms of backlight, this product uses a 19S2P WLED side entry light source (on the right), which has a lifespan of 30K hours and does not include backlight drivers. LM190E0A-SLD1 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

M190ETN01.0 is a 19.0-inch a-Si TFT-LCD LCD module product launched by AU. It is equipped with WLED backlight, no backlight driver, and no touch. The working temperature of this product is 0-50 ° C, and the storage temperature is -20~60 ° C. Its typical feature screen library is summarized as: white LED backlight, terminal mounting, surface matte, TCO 7.0 Compliance. Based on its feature screen library, this model is recommended for use in products such as computer monitors. According to the product specification document Ver2.0 released by AUO on December 24, 2015, the M190ETN01.0 has a display resolution of 1280 (RGB) × 1024 (SXGA), an aspect ratio of 5:4 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 376.32 (width) × 301.056 (height) mm, the appearance size is 396 (width) × 324 (height) × 11.4 (thickness) mm, the visible size is 380.0 (width) × 305.08 (height) mm, and the surface treatment is matte, Hard coating (3H)， The net weight of the product is 1.70Kgs (Typ.). In terms of backlight, this product adopts a side entry light source (bottom) with 11S4P WLED emission, and the service life of the light source is 30K hours, without backlight driver. M190ETN01.0 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

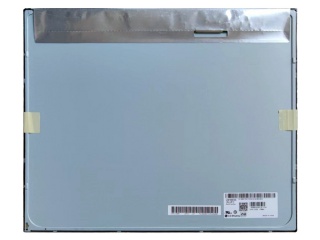

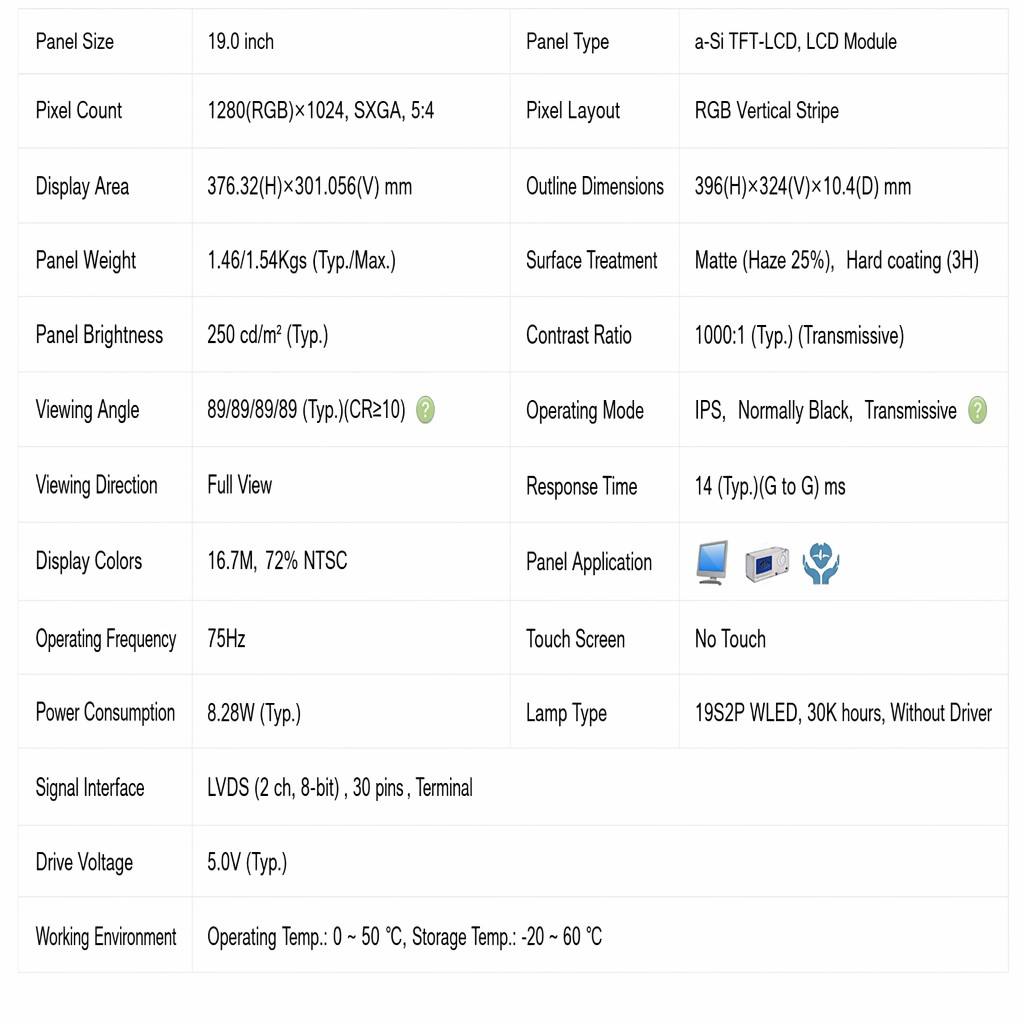

The display resolution of LM190E0A-SLE1 is 1280 (RGB) × 1024 (SXGA), with an aspect ratio of 5:4 (width: height), and the pixels are arranged vertically in RGB stripes. Its display area size is 376.32 (width) × 301.056 (height) mm, the external dimensions are 396 (width) × 324 (height) × 10.4 (thickness) mm, the visible dimensions are 378.8 (width) × 303.0 (height) mm, the surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 1.46/1.54Kgs (Typ./Max.). In terms of backlight, this product uses a 19S2P WLED side entry light source (on the right), which has a lifespan of 30K hours and does not include backlight drivers. LM190E0A-SLE1 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

Typical features are summarized as follows: white LED backlight, terminal assembly, and matte surface. Based on its features, this model is recommended for use in computer monitors.

Compatible Brand Acer,Gateway,HP/Compaq,MSI,Lenovo,Dell(ru),SAMSUNG,LG,Fujitsu,Asus
