Introduction to Introduction to LM270WQ5-SSA1 27-inch LCD Touch Screen

The LM270WQ5-SSA1 has a display resolution of 2560 (RGB) × 1440 (Quad HD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 596.736 (width) × 335.664 (height) mm, and its appearance size is 608.6 (width) × 348.3 (height) × 15.3 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 2.90/3.05Kg (Typ./Max.). In terms of backlight, this product uses a 16S4P WLED side entry light source (bottom) with a lifespan of 30K hours, without backlight driver. LM270WQ5-SSA1 adopts LVDS (4 ch, 8-bit) signal interface, with a total of 92 pins, connected by terminals, and a screen driving voltage of 10.0V (Typ.). Its typical vertical refresh rate Fv is 60Hz. With touch

Introduction to Introduction to LM270WQ1-SLC2 27-inch LCD Screen

The LM270WQ1-SLC2 has a display resolution of 2560 (RGB) × 1440 (Quad HD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 596.736 (width) × 335.664 (height) mm, and its appearance size is 630 (width) × 368.2 (height) × 15.4 (thickness) mm. The visible size is 602.0 (width) × 340.4 (height) mm, and the surface treatment is matte, Hard coating (3H)， The net weight of the product is 2.62/2.75Kgs (Typ./Max.). In terms of backlight, this product adopts a 17S4P WLED side entry light source (bottom) with a lifespan of 30K hours, without backlight driver. LM270WQ1-SLC2 adopts LVDS (4 ch, 10 bit) signal interface, with a total of 92 pins, connected by terminals, and a screen driving voltage of 12.0V (Typ.). Its typical vertical refresh rate Fv is 60Hz.

Introduction to Introduction to LM270WF7-SSD1 27-inch LCD Touch Screen

The display resolution of LM270WF7-SSD1 is 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width: height), and the pixels are arranged vertically in RGB stripes. Its display area size is 597.888 × 336.312 (width × height) mm, and its appearance size is 607.1 × 354.1 (width × height) × 13.2 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 3.12/3.27Kgs (Typ./Max.). In terms of backlight, this product adopts a 17S4P WLED side entry light source (bottom) with a lifespan of 30K hours, without backlight driver. LM270WF7-SSD1 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz, with touch

Introduction to Introduction to LM270WFA-SSA1 27-inch LCD Screen

Introduction to Introduction to LM270WF5-S4A1 27-inch LCD Screen

The display resolution of LM270WF5-S4A1 is 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width: height), and the pixels are arranged vertically in RGB stripes. Its display area size is 597.888 × 336.312 (width × height) mm, and its appearance size is 620.98 (width) × 371.65 (height) × 11.2 (thickness) mm. The surface treatment is matte, Hard coating (3H)， The net weight of the product is TBD. In terms of backlight, this product uses a 15S4P WLED side entry light source with a lifespan of 30K hours and does not include backlight drivers. LM270WF5-S4A1 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

Introduction to Introduction to G238HAN01.3 23.8-inch LCD Screen

G238HAN01.3 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 527.04 (width) × 296.46 (height) mm, and its appearance size is 543 (width) × 317.4 (height) × 11.65 (thickness) mm. The visible size is 530.2 (width) × 299.6 (height) mm, and the surface treatment is matte, Hard coating (3H)， The net weight of the product is 2.30Kgs (Typ.). In terms of backlight, this product uses a 20S4P WLED side entry light source (bottom) with a lifespan of 50K hours, without backlight driver. G238HAN01.3 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 60Hz.

Introduction to Introduction to M215HAN01.1 21.5-inch LCD Screen

M215HAN01.1 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 476.064 × 267.786 (width × height) mm, and its appearance size is 484.5 (width) × 284.4 (height) × 13.35 (thickness) mm. The surface treatment is matte, Hard coating (3H)， The net weight of the product is 1.58Kg (Typ.). In terms of backlight, this product adopts a 15S4P WLED side entry light source (bottom) with a lifespan of 30K hours, without backlight driver. M215HAN01.1 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

Introduction to Introduction to M215HGE-L21 21.5-inch LCD Screen

The M215HGE-L21 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 476.64 (width) × 268.11 (height) mm, the external dimensions are 495.6 (width) × 292.2 (height) × 11.5 (thickness) mm, the visible dimensions are 479.8 (width) × 271.3 (height) mm, the surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 1.91/2.10Kgs (Typ./Max.). In terms of backlight, this product adopts a side entry light source (right side) with 11S4P WLED emission, and the service life of the light source is 40K hours, without backlight driver. M215HGE-L21 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

Introduction to Introduction to M215HGE-L23 21.5-inch LCD Screen

The M215HGE-L23 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 476.64 × 268.11 (width × height) mm, the visible size is 479.8 × 271.3 (width × height) mm, the appearance size is 495.6 (width) × 292.2 (height) × 11.5 (thickness) mm, the surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 2.10/2.16Kgs (Typ./Max.). In terms of backlight, this product adopts a side entry light source (right side) with 11S4P WLED emission, and the service life of the light source is 40K hours, without backlight driver. M215HGE-L23 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

Introduction to Introduction to M238HCJ-L3N 23.8-inch LCD Screen

The M238HCJ-L3N has a display resolution of 1920(RGB)×1080 (FHD), with an aspect ratio of 16:9 (width:height), and uses RGB vertical stripe pixel arrangement. Its display area dimensions are 527.04×296.46 (width×height) mm, visible dimensions are 530.24×299.66 (width×height) mm, and the external dimensions are 540.24 (width)×316.66 (height)×11.95 (thickness) mm. The surface finish is matte (Haze 25%) with hard coating (3H), and the net weight is 2.30Kgs (Typ.). For backlighting, this product employs a 18S4P WLED side-emitting light source, with a lifespan of 30K hours, excluding backlight driver. The M238HCJ-L3N features an LVDS (2 channels, 8-bit) signal interface with a total of 30 pins, utilizing terminal connections, and operates at a drive voltage of 5.0V (Typ.). Its typical vertical refresh rate (Fv) is 75Hz.

Introduction to Introduction to M238DAN01.1 23.8-inch LCD Screen

The M238DAN01.1 has a display resolution of 2560 (RGB) × 1440 (Quad-HD), with an aspect ratio of 16:9 (width:height), and employs RGB vertical stripe pixel arrangement. The active display area measures 526.85 × 296.35 (width × height) mm, while the external dimensions are 534.74 (width) × 313.26 (height) × 12.3 (thickness) mm. The surface treatment features a matte finish with hard coating (3H), and the product weighs 2.20 kg (typical). For backlighting, this product utilizes a side-illuminated WLED light source with a 20S4P configuration, offering a lifespan of 30,000 hours (excluding backlight driver). The M238DAN01.1Q0 adopts an LVDS (4-channel, 8-bit) signal interface with a total of 92 pins, connected via terminal blocks, and operates at a driving voltage of 5.0V (typical). Its typical vertical refresh rate (Fv) is 75Hz.

Introduction to Introduction to M238HHJ-K70 23.8-inch LCD Screen

The M238HHJ-K70 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 527.04 × 296.46 (width × height) mm, the visible size is 530.24 × 299.66 (width × height) mm, the appearance size is 551.04 × 320.46 (width × height) × 14.75 (thickness) mm, the surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 2.16/2.4/2.52Kgs (Min./Typ./Max.). In terms of backlight, this product adopts a WLED side entry light source without backlight driver. The M238HHJ-K70 adopts a V-by-One 8 lanes signal interface, with a total of 51 pins, connected by terminals, and a screen driving voltage of 12.0V (Typ.). Its typical vertical refresh rate Fv is 240Hz.

Introduction to Introduction to M238HVN02.5 23.8-inch LCD Screen

The M238HVN02.5 has a display resolution of 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width:height). The pixels are arranged in vertical RGB stripes. Its display area dimensions are 525.888 mm (width) × 295.812 mm (height), while the exterior dimensions are 535.2 mm (width) × 313.86 mm (height) × 13.65 mm (thickness). The surface treatment features a matte finish (Haze 40%) and hard coating (3H). The product weighs 1.75 kg (typical). For backlighting, this product employs a side-emitting WLED light source with 18S4P configuration, offering a lifespan of 30K hours. The M238HVN02.5 utilizes an LVDS (4-channel, 8-bit) signal interface with a total of 61 pins, connected via terminal blocks. The driving voltage for the display is 5.0V (typical). Its typical vertical refresh rate (Fv) is 165Hz.

Introduction to Introduction to LM238WF6-SSA4 23.8-inch LCD Screen

The display resolution of LM238WF6-SSA4 is 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width: height), and the pixels are arranged vertically in RGB stripes. Its display area size is 527.04 × 296.46 (width × height) mm, and its appearance size is 535 × 313 (width × height) × 15.35 (thickness) mm. The surface treatment is Hard coating (3H), and the net weight of the product is 2.14/2.24Kgs (Typ./Max.). In terms of backlight, this product uses a WLED side entry light source with a lifespan of 30K hours and does not include backlight drivers. LM238WF6-SSA4 adopts LVDS (4 ch, 8-bit) signal interface, with a total of 92 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.).

Introduction to Introduction to LM238WF4-SSJ2 23.8-inch LCD Screen

The display resolution of LM238WF4-SSJ2 is 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width: height), and the pixels are arranged vertically in RGB stripes. Its display area size is 527.04 × 296.46 (width × height) mm, and its appearance size is 534.9 × 306.95 (width × height) × 12.9 (thickness) mm. The surface treatment is matte (Haze 1%), Hard coating (3H), and the net weight of the product is 2.00/2.10Kgs (Typ./Max.). In terms of backlight, this product uses a 14S4P WLED side entry light source (bottom) with a lifespan of 30K hours, without backlight driver. LM238WF4-SSJ2 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

Introduction to Introduction to LM238WF2-SSP2 23.8-inch LCD Screen

The display resolution of LM238WF2-SSP2 is 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width: height), and the pixels are arranged vertically in RGB stripes. Its display area size is 527.04 × 296.46 (width × height) mm, and its appearance size is 535 (width) × 313 (height) × 11.65 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 2.17/2.28Kg (Typ./Max.). In terms of backlight, this product adopts a 15S4P WLED side entry light source (bottom) with a lifespan of 30K hours, without backlight driver. LM238WF2-SSP2 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0 (Typ.). Its typical vertical refresh rate Fv is 75Hz.

Introduction to Introduction to LM238WF2-RSAR8 23.8-inch LCD Screen

The display resolution of LM238WF2-RSAR8 is 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width: height), and the pixels are arranged in vertical RGB stripes. Its display area size is 527.04 × 296.46 (width × height) mm, and its appearance size is 539.84 × 322.99 (width × height) × 13.2 (thickness) mm. The surface treatment is matte, Hard coating (3H)， The net weight of the product is 2.09/2.15Kg (Typ./Max.). In terms of backlight, this product adopts a side entry light source (bottom) with 4 strings WLED emission, and the service life of the light source is 30K hours, without backlight driver. LM238WF2-RSAR8 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

Introduction to Introduction to LM238WF1-SLK1 23.8-inch LCD Screen

The display resolution of LM238WF1-SLK1 is 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width: height), and the pixels are arranged vertically in RGB stripes. Its display area size is 527.04 (width) × 296.46 (height) mm, and its appearance size is 543 (width) × 317.4 (height) × 11.7 (thickness) mm. The visible size is 530.2 (width) × 299.6 (height) mm, and the surface treatment is matte, Hard coating (3H)， The net weight of the product is 2.00/2.10Kgs (Typ./Max.). In terms of backlight, this product adopts a side entry light source (bottom) with 18S2P WLED emission, and the service life of the light source is 30K hours, without backlight driver. LM238WF1-SLK1 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

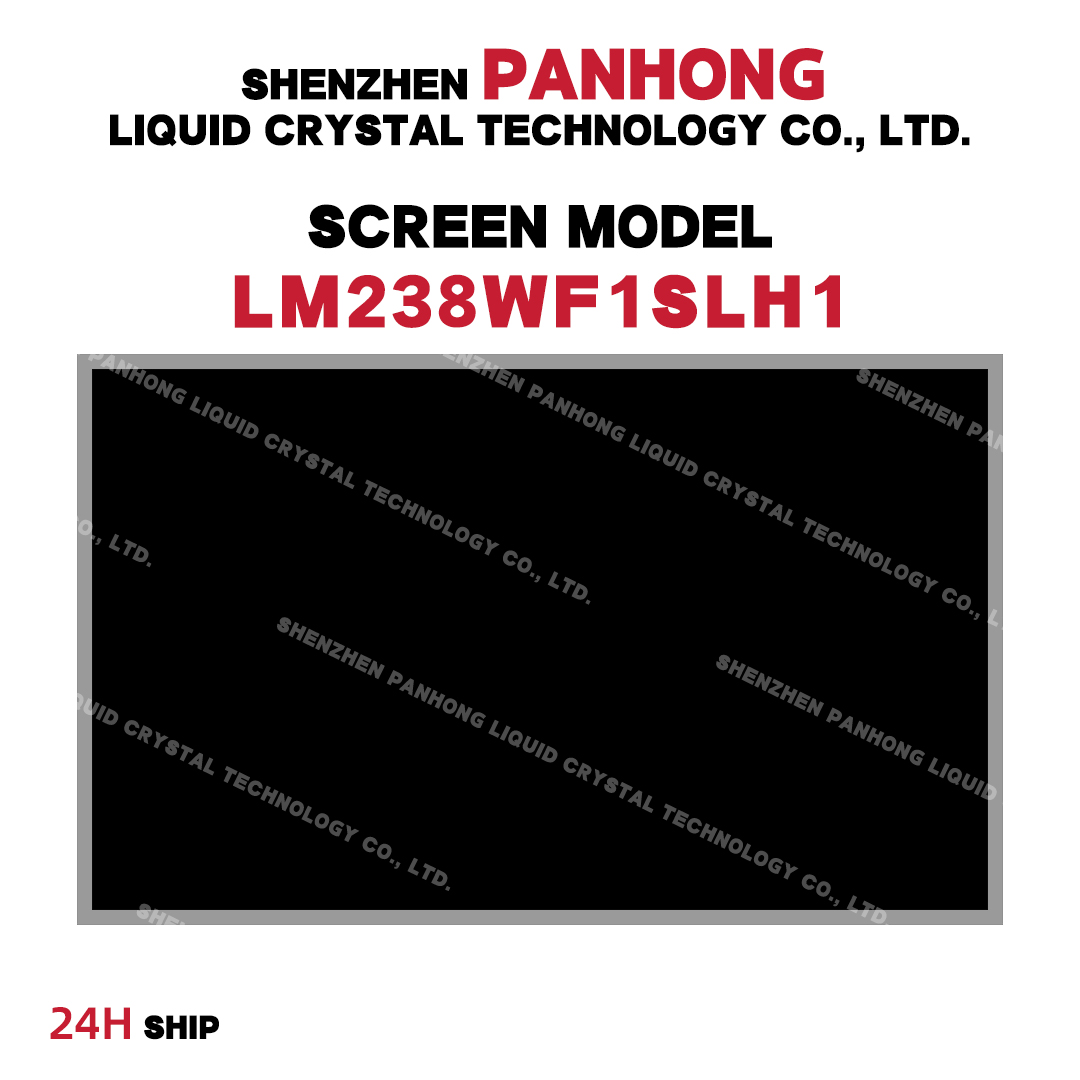

Introduction to Introduction to LM238WF1-SLH1 23.8-inch LCD Screen

The display resolution of LM238WF1-SLH1 is 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width: height), and the pixels are arranged vertically in RGB stripes. Its display area size is 527.04 × 296.46 (width × height) mm, the visible size is 530.2 × 299.6 (width × height) mm, the appearance size is 546 × 318.9 (width × height) × 8.1 (thickness) mm, and the surface treatment is matte, Hard coating (3H)， The net weight of the product is TBD. In terms of backlight, this product adopts a side entry light source (right side) with 3 strings WLED emission, and the service life of the light source is 30K hours, without backlight driver. LM238WF1-SLH1 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

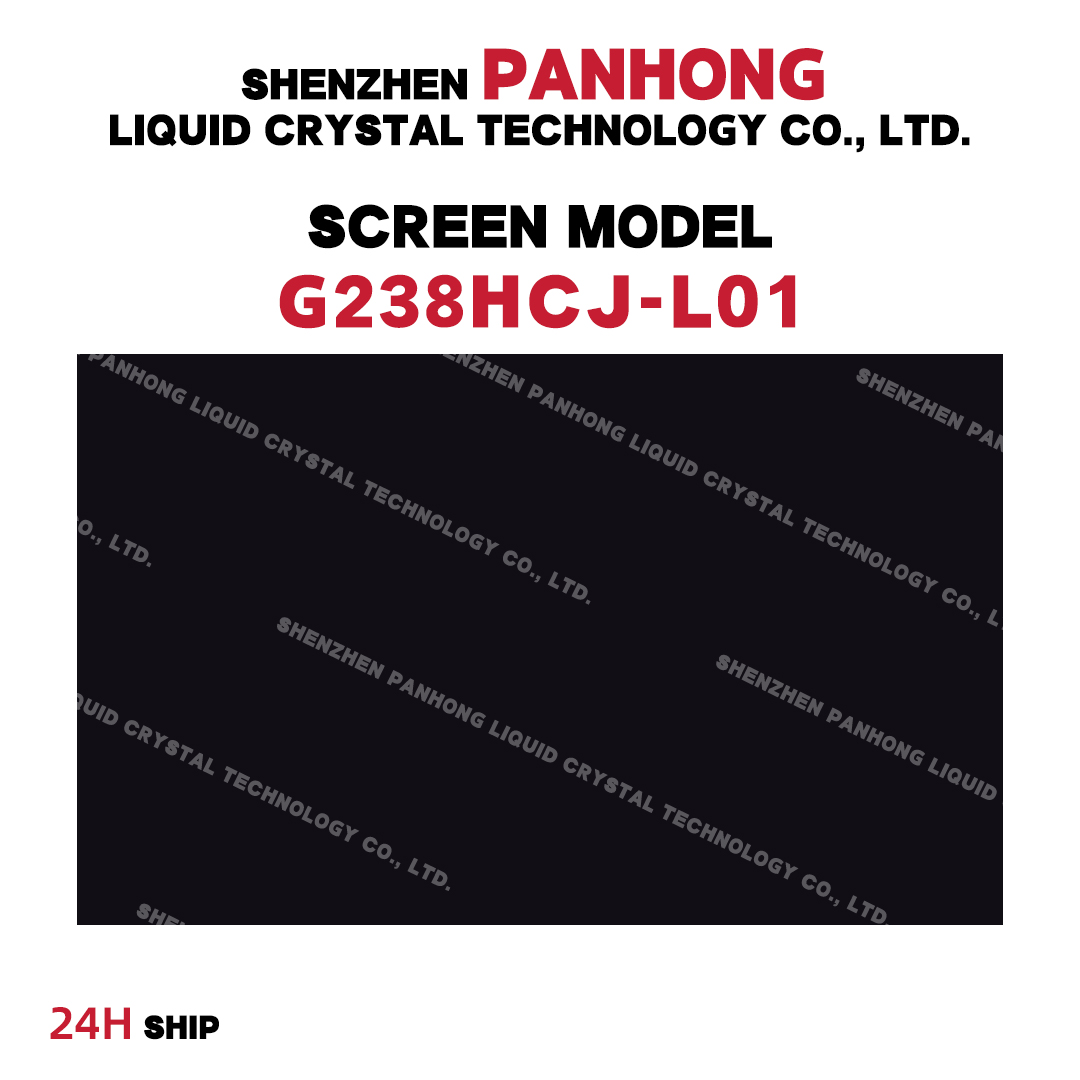

Introduction to Introduction to G238HCJ-L01 23.8-inch LCD Screen

G238HCJ-L01 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 527.04 × 296.46 (width × height) mm, the visible size is 530.2 × 299.6 (width × height) mm, the appearance size is 543 × 317.4 (width × height) × 11.6 (thickness) mm, the surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 2.71Kg (Typ.). In terms of backlight, this product uses a WLED side entry light source with a lifespan of 30K hours and does not include backlight drivers. G238HCJ-L01 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, terminal connection, and a screen driving voltage of 5.0 ± 0.5V. Its typical vertical refresh rate Fv is 60Hz.
